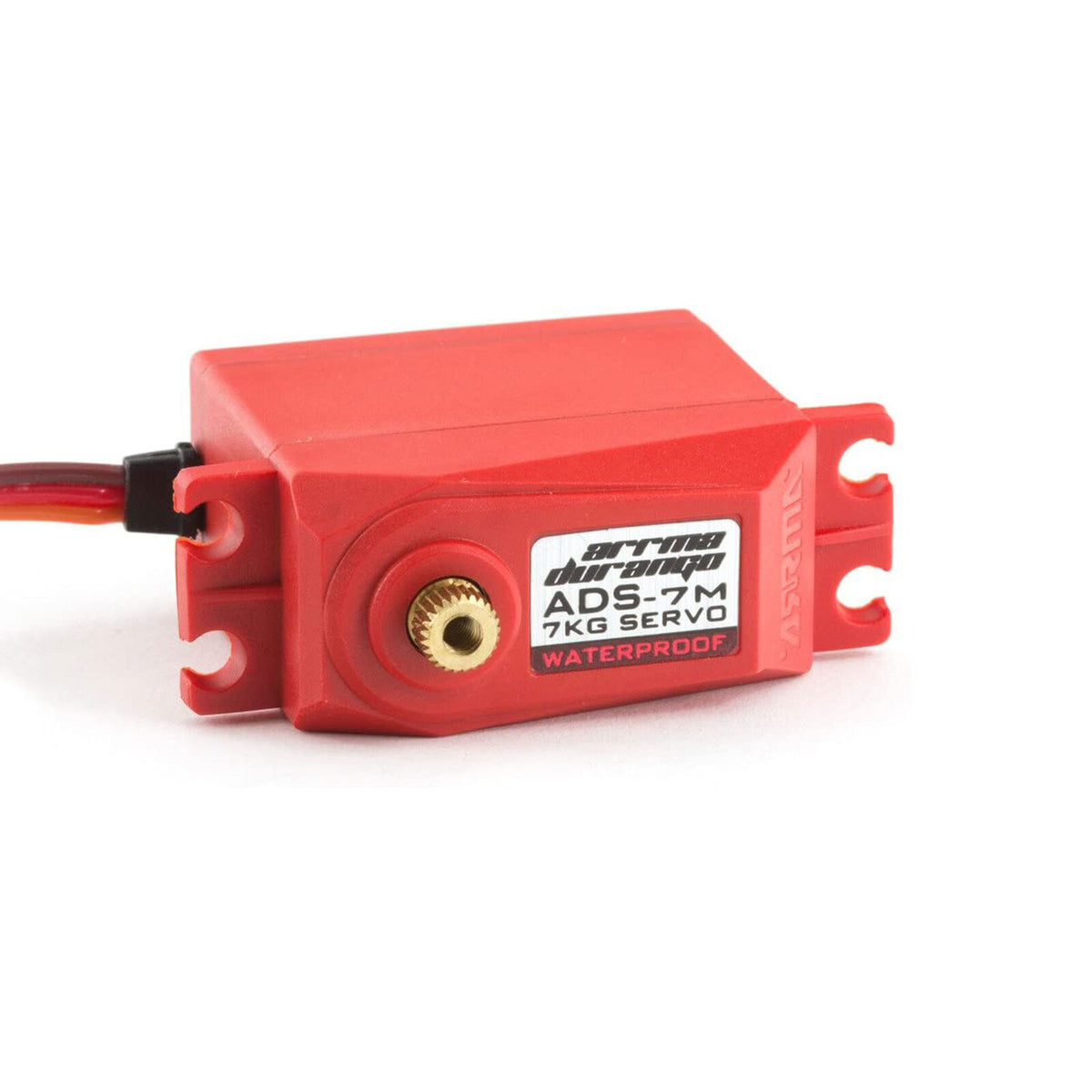

ARAM1019 ADS-7M V2 6.5kg Waterproof Servo, Red
ARAM1019 ADS-7M V2 6.5kg Waterproof Servo, Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
ARAM1019 ADS-7M V2 6.5kg Waterproof Servo, Red Overview
The ADS-7M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials. Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – Metal
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
ARRMA ADS-7M V2 6.5kg Waterproof Servo, Red Product Specs
- ApplicationCars, Trucks
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Connector Wire Length11.81" (300 mm)
- Gear TypeMetal
- Input Voltage6.0V ~ 7.2V
- Manufacturer #AR390136
- Maximum Servo Speed0.14 sec/60 deg @ 6.0V, 0.12 sec/60 deg @ 7.2V
- Maximum Servo Torque97oz/in @ 7.2V
- Product Height1.49" (38 mm)
- Product Length1.57" (40 mm)
- Product Width0.78" (20 mm)
- ProgrammableNo
- Servo Operating Voltage6.0V
- Servo Size CategoryStandard
- Servo TypeAnalog
- Spline Count25 - Tooth
- Water-ResistantYes
Torque – ADS-7M: 7kg/cm (97oz/inch) at 7.2V
Speed – 0.14 sec/0.12 sec 6V/7.2V
Signal – Analogue
ARAM1019 ADS-7M V2 6.5kg Waterproof Servo, Red
