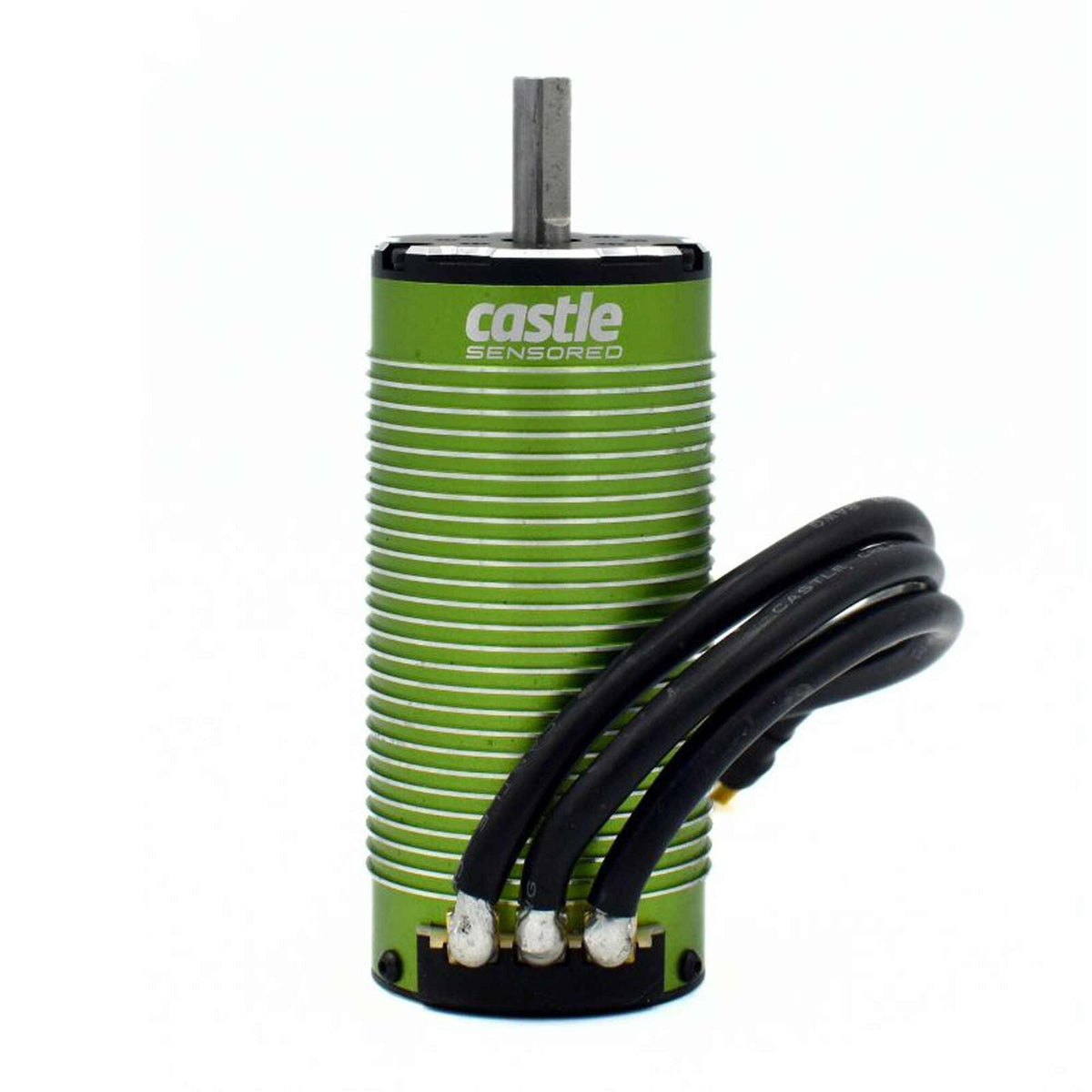

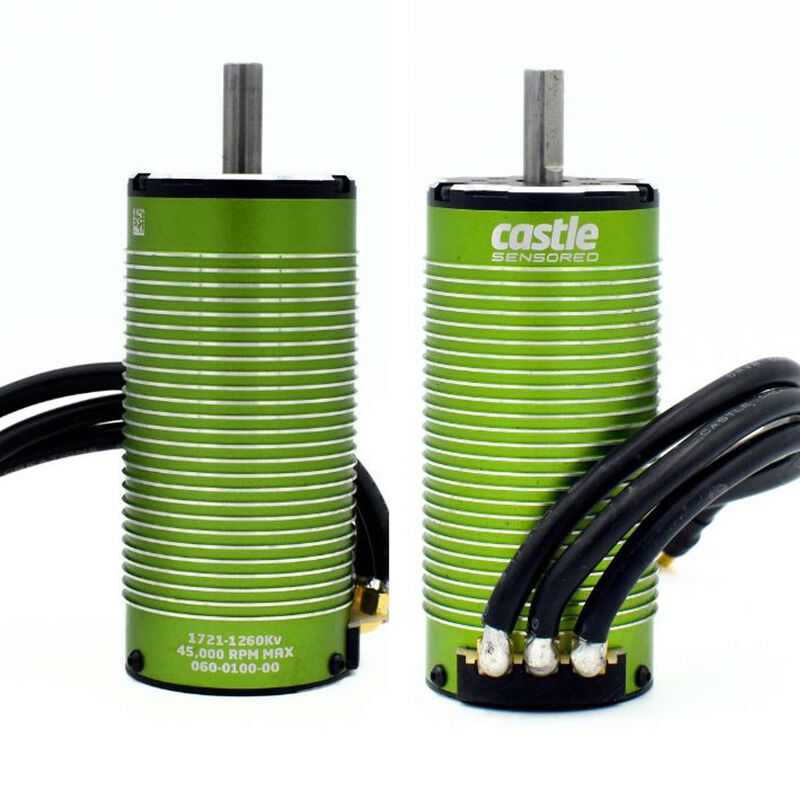

1721-1260Kv Brushless Sensored 4 Pole Motor - CSE060010000
- $ 234.95
-
- $ 234.95
- Unit price
- per
Description
x1721-1260Kv Brushless Sensored 4 Pole Motor
Castle Creations is thrilled to announce the latest addition to their lineup of high-performance brushless motors for surface applications - the brand new 1721-1260Kv!
- 4-Pole 12-Slot Design Boasts Exceptional Efficiency
- High-Strength, High-Temperature Grade Neodymium Sintered Magnets
- Proprietary Winding Techniques
- High-Strength Kevlar Wrap Ensures Rotor Integrity
- Oversized NMB Bearings And Vibration Dampening
In The Box
- (1) 1721-1260Kv Brushless Sensored 4 Pole Motor
Introduction
This powerful and efficient motor is designed to deliver exceptional speed, torque, and acceleration, making it the perfect choice for serious large-scale bashers who demand nothing but the best. Built with precision-machined components, high-strength magnets, and advanced winding techniques, this motor is engineered to deliver reliable and consistent performance in even the most challenging conditions.
Features
- 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- OPTIMIZED design eliminates the need for mechanical timing adjustments as sensor alignment method delivers uniform timing and torque in both directions, automatically.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Proprietary winding techniques produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
What makes this motor different than the other 17 series motors?
GREAT QUESTION! The 1721-1260kv is the “sane brother” to the 1721-2400kv. Where the 1721-2400kv is made for one thing, SPEED, the 1721-1260kv is built on the same platform, but at a more conventional Kv. It packs more punch and runs cooler than its baby brother the 1717-1260kv. This makes it the perfect moderate, yet powerful, upgrade to the 1717 size motors that come stock in the Traxxas X- Maxx and Arrma 8s vehicles.
What ESC do we recommend?
The 1721-1260Kv is an excellent companion for the Mamba XLX2 which is already packaged together for purchase as a combo.
Product Specifications
| Input Voltage | 3s-8s |
| RPM/Volt (Kv) | 45,000 RPM |
| Sensored | Yes |
| Product Length | 3.984252" (101 mm) |
| Motor Type | Brushless |
| Speed Control | Sold Separately |
| Outer Diameter | 1.87" (47 mm) |
| Product Weight | 1.71 lbs. / 27.36 oz |
| Water-Resistant | Yes |
| Forward | Yes |
| Reverse | Yes |
| Wire Gauge | 8 AWG |
| Programmable | Yes |
