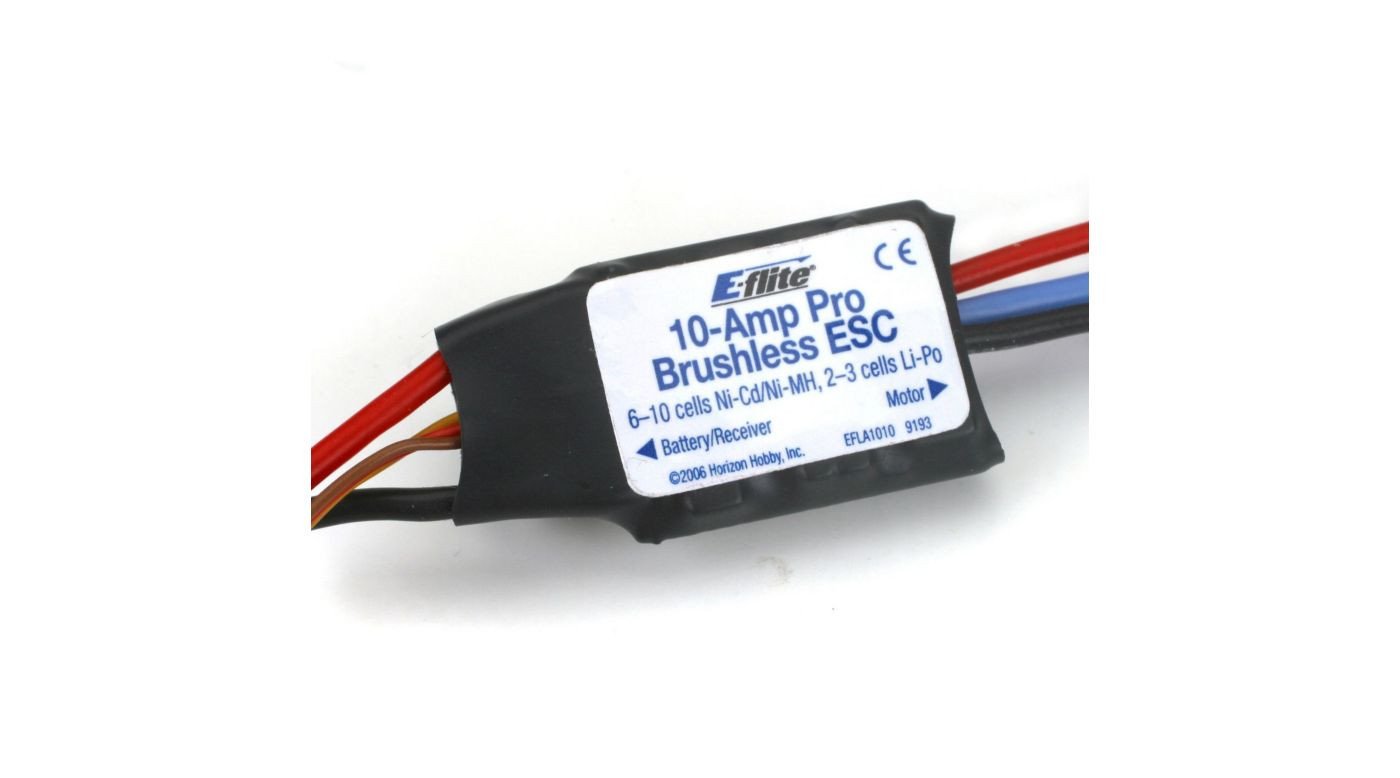

10-Amp Pro Brushless ESC (EFLA1010)

  • 10-Amp Pro Brushless ESC (EFLA1010)

$ 27.99


This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2–3 cell Li-Po battery packs and up to 4 sub-micro servos. Standard features include advance BEC and safe power-arming along with programmable features such as low-voltage cutoff, braking, timing and throttle input range.

Key Features

  • Up to 10-amp continuous current with proper air flow
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or Auto Select)
  • Auto motor shutdown if signal is lost or there is interference
  • Programmable timing—2 user-selectable ranges for use with a large variety of brushless motors
  • Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
  • Soft start

Specs

Amperage: 20 & Under
Brakes: Yes - Programmable
Cells w/BEC: 2-3S Li-Po or 6-10 Ni-MH/Ni-Cd
Input Connector Types: JST
Momentary Peak Current: 12A (15 sec)
Output Connector Types: 20AWG with 2mm female gold bullet connectors

Type Accessories
Vendor EFLITE
