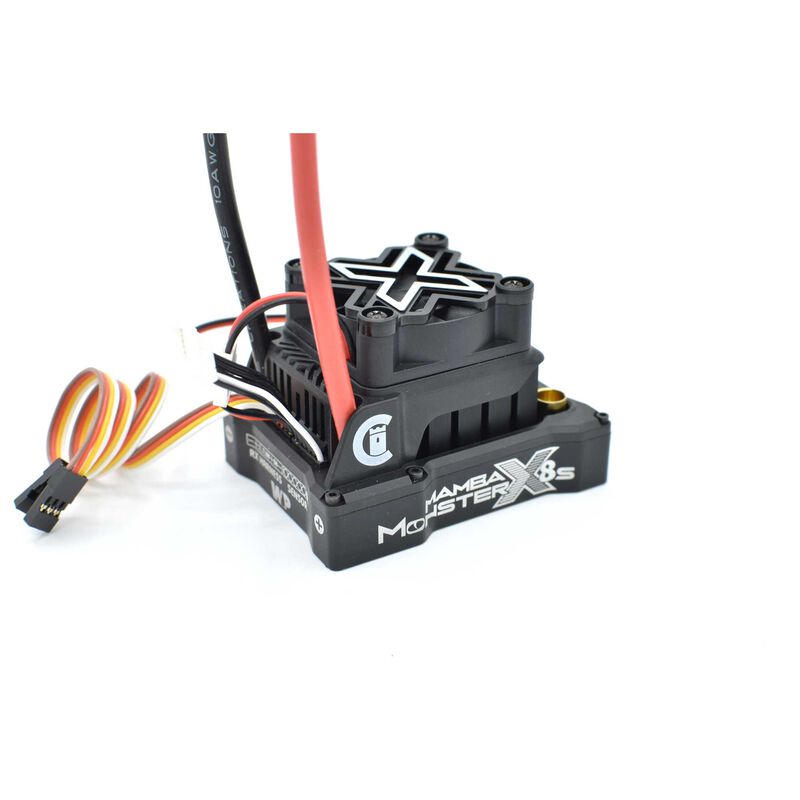

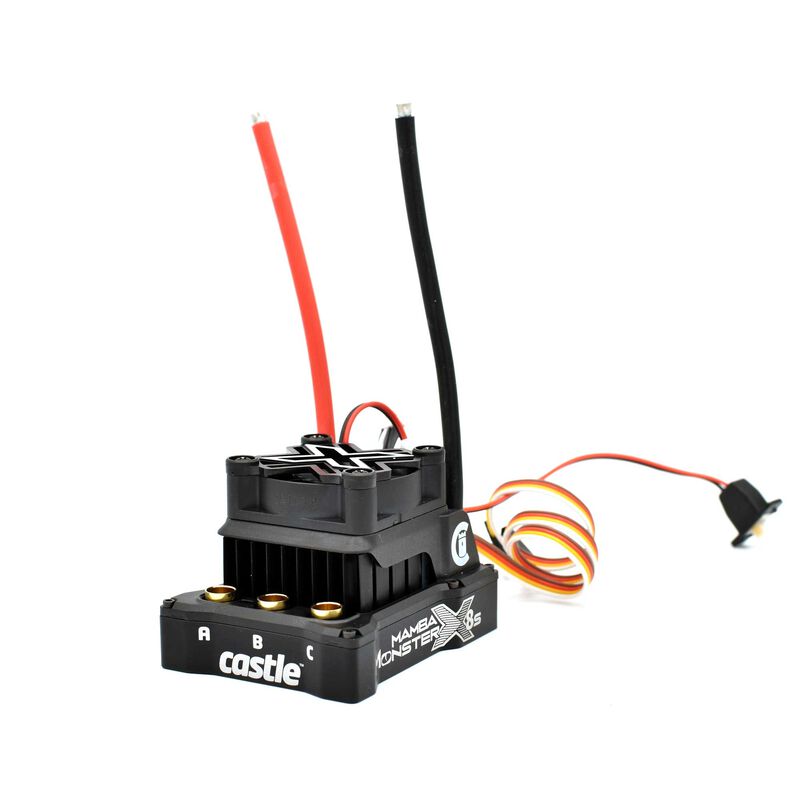

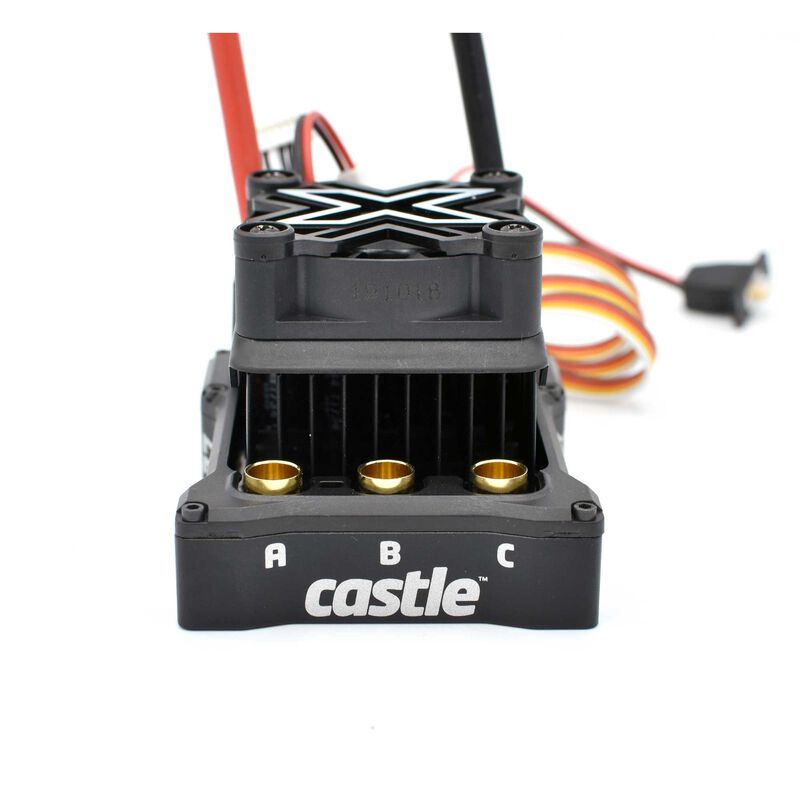

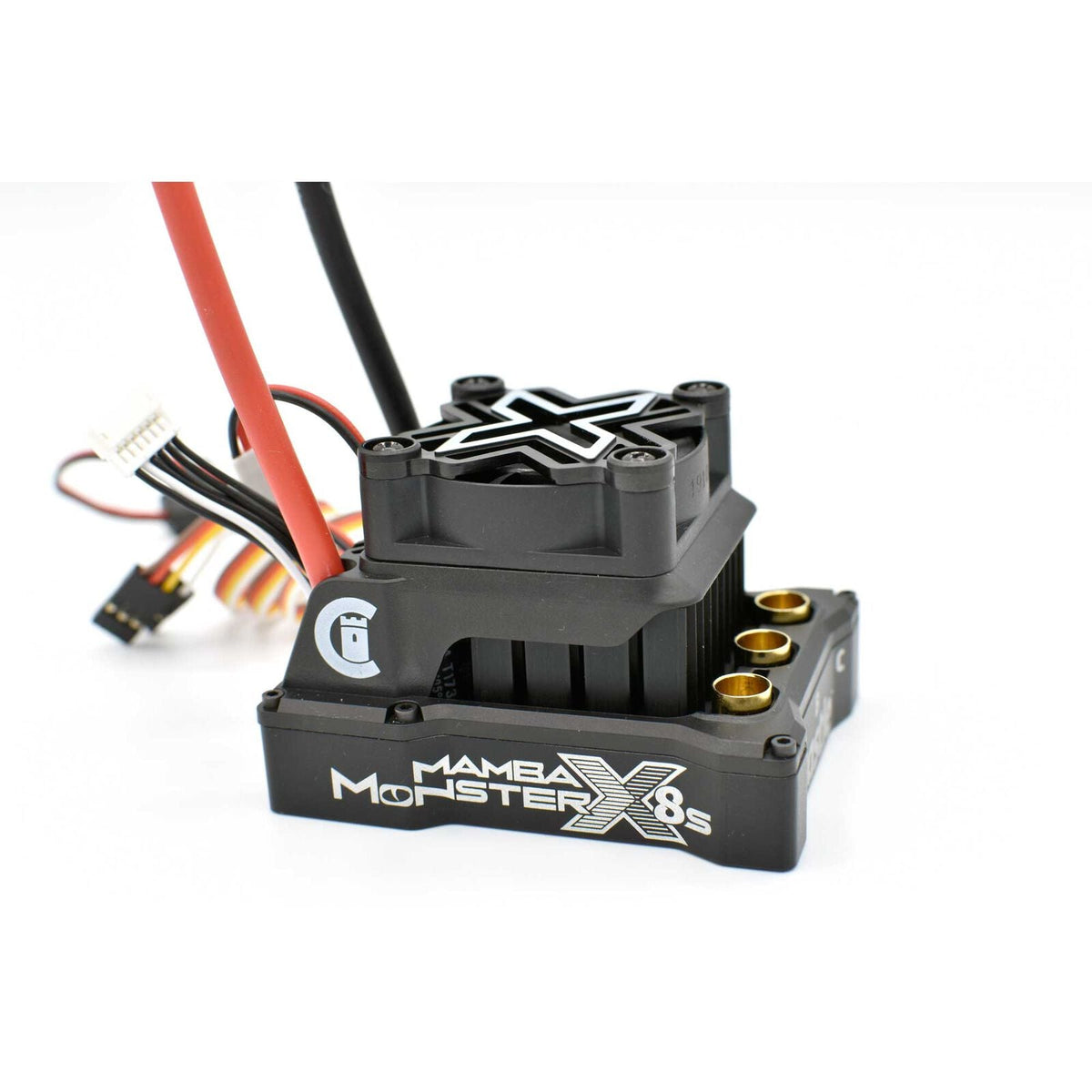

1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC - CSE010016500
SKU:
CSE010016500
- $ 214.95
-
- $ 214.95
- Unit price
- per
Please hurry! Only 2 left in stock
Subtotal:
$ 214.95
10 customers are viewing this product
Description
xProduct Details
Quick Links
Features
- Input voltage range 2S-8S LiPo
- Sensored, Sensorless and SmartSense™ running modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
- Oversized factory equipped thermally controlled 40mm fan
- Waterproof design for all weather conditions
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
- Data-logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
- Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
- Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
- Easily tune and update ESC with USB and Bluetooth™ programming options.
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
- Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty
Overview
CRYO-DRIVE™, Castle’s latest break-through technology, minimizes the amount of time the ESC’s electrical components spend generating heat. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm fan and a forged elliptical fin heatsink, the new design maximizes airflow through the system, taking thermal performance to a whole new level. The results are cooler ESC temperatures, increased runtime and more power handling.
Needed to Complete
- A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
What's in the Box?
- (1) 1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
- (1) Product Manual
Product Specifications
| Connector Type | 6.5mm Bullet |
| Product Length | 2.7" (69.5mm) |
| Low-Voltage Cutoff Programmable | Yes |
| Overload Protection | Yes |
| Product Weight | 5.75oz (163g) |
| Brakes | Proportional |
| Programmable | Yes |
| BEC Type | Adjustable |
| BEC | Yes |
| BEC Maximum Burst Current | 8A Peak |
| BEC Voltage | Adjustable, 5.5V default |
| Input Voltage | 7.4 - 33.6V (2S - 8S) |
| Product Height | 1.8" (47mm) |
| Battery Input Lead | None |
| Product Width | 2.1" (54.1mm) |
