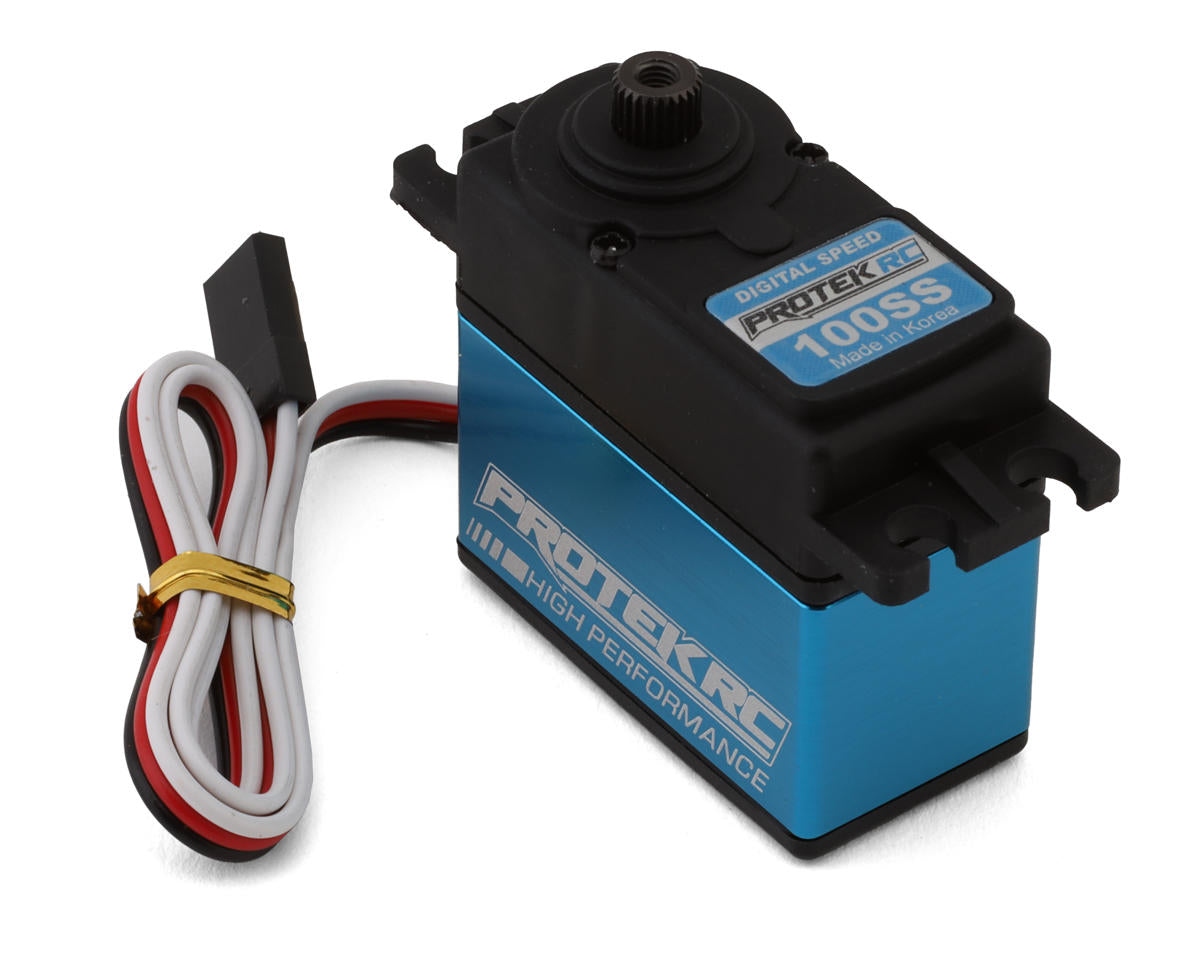

This is the ProTek R/C 100SS Digital Super Speed Metal Gear Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what the competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 100SS Digital Super Speed servo delivers a swift 0.09 transit speed and 168 oz-in of torque. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.
Features:
- Ideal for any 1/10 scale vehicle application
- Aluminum middle case
- 0.09 transit speed, and 168 oz-in of torque @ 6.0V

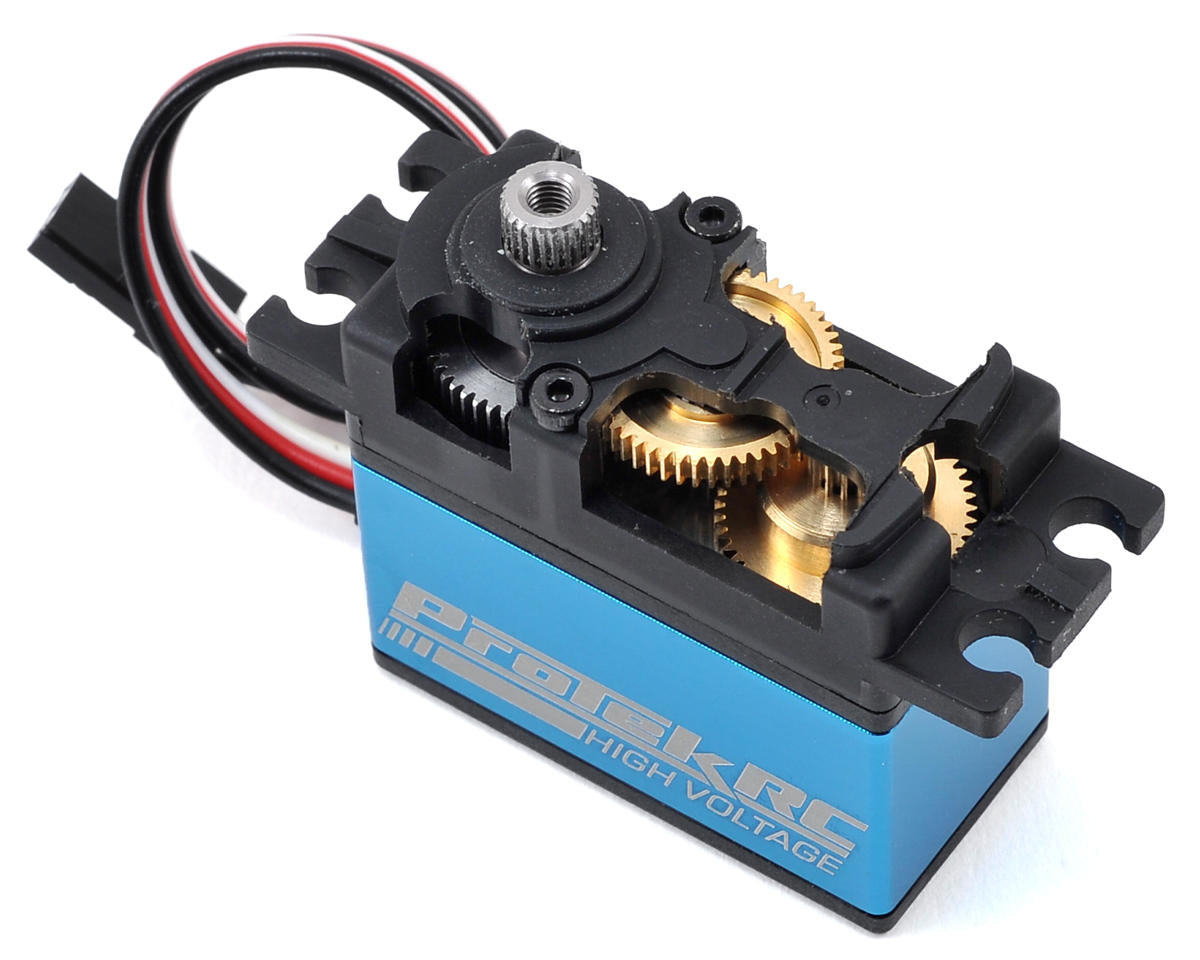

- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Cored Motor
Specifications:
-
Servo Model: 100SS
-
Recommended Application: 1/10 scale surface
-
Operating Voltage: 4.8V – 6.0V
-
Operating Temperature: 14° to 140° F (-10° to +60° C)
-
Operating Speed @ 4.8V: 0.11/60° sec
-
Operating Speed @ 6.0V: 0.09/60° sec
-
Dynamic Torque @ 4.8V: 134 oz-in (9.6 kg-cm)
-
Dynamic Torque @ 6.0V: 168 oz-in (12.1 kg-cm)
-
Motor Type: Cored DC Motor
-
Output Shaft: 25 Tooth
-
Gears: Metal
-
Weight: 54.9g
-
Pulse/Frequency: 1520µs / 333Hz
