SPMSS7110 Low Profile Servo Winch: 1/10 Rock Crawlers
SPMSS7110 Low Profile Servo Winch: 1/10 Rock Crawlers is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

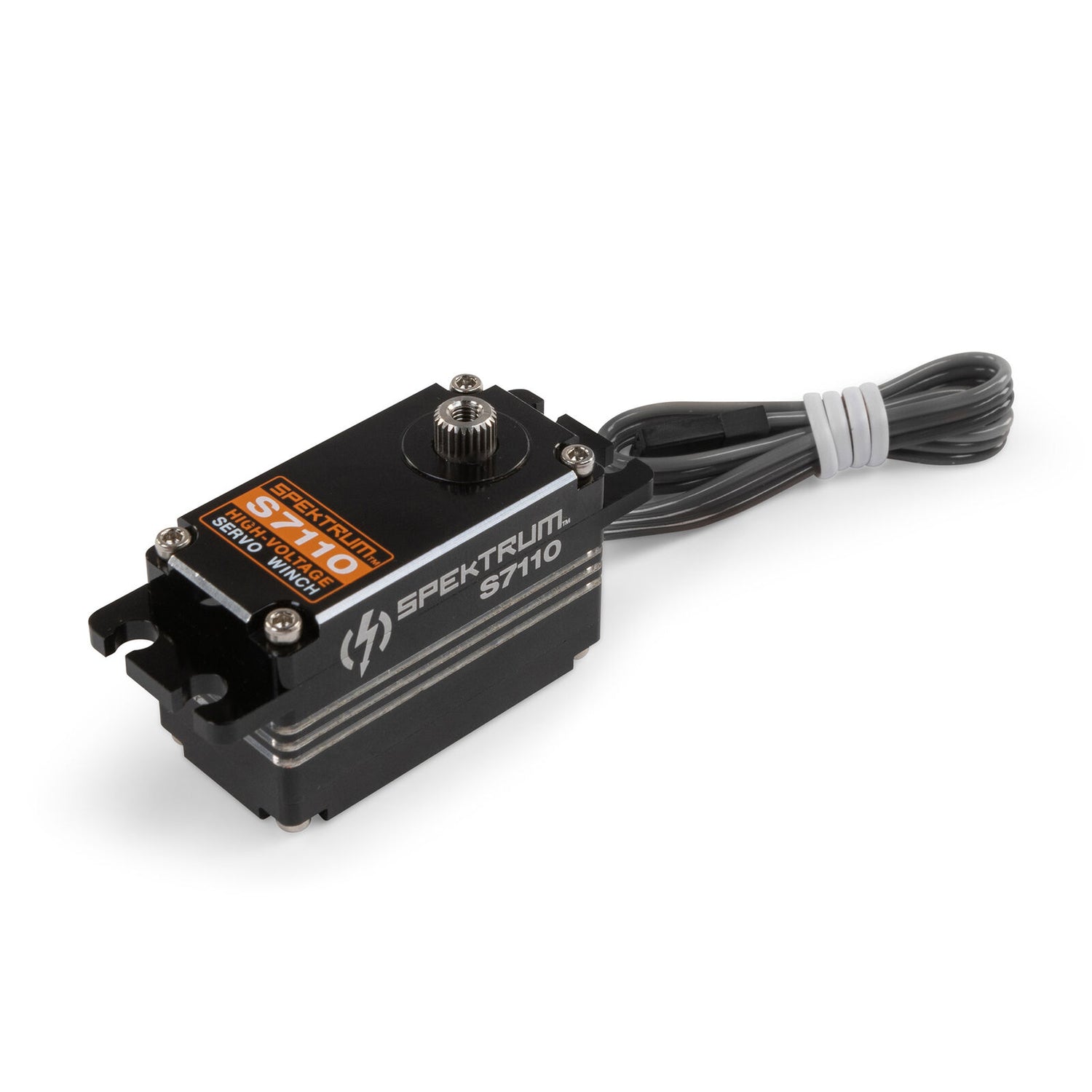

Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers Features
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft

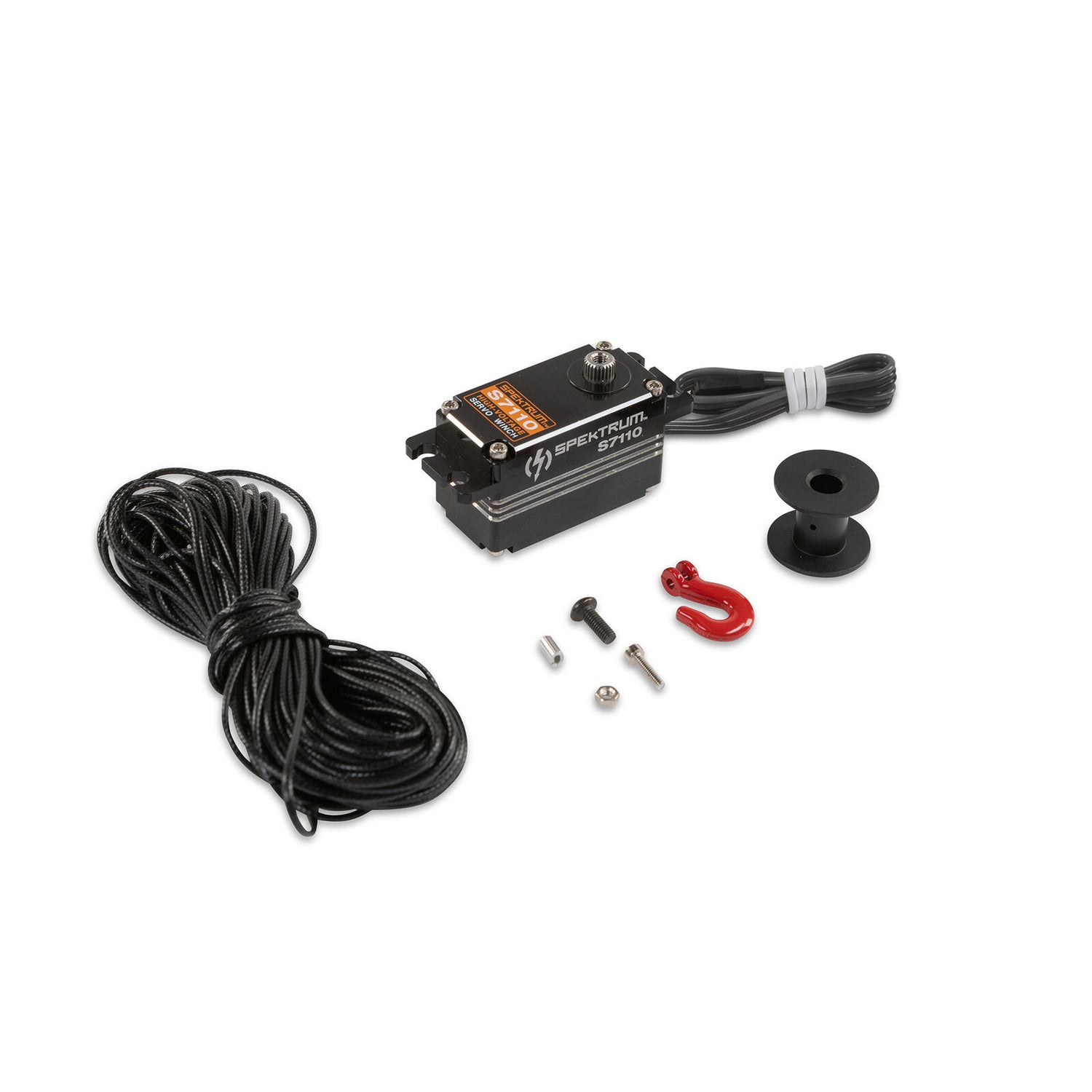

- Includes everything needed to start winching
Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers Product Specs
- Application1/10 Rock Crawlers- Winch
- BearingBall Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Connector Wire Length7.48" (190 mm)
- Current Draw Idle2mA
- Current Draw Stall1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
- Gear TypeMetal
- Input Voltage6.0V ~ 8.4V
- Maximum Servo Speed123RPM @ 6.0V, 155RPM @ 7.4V
- Maximum Servo Torque130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V

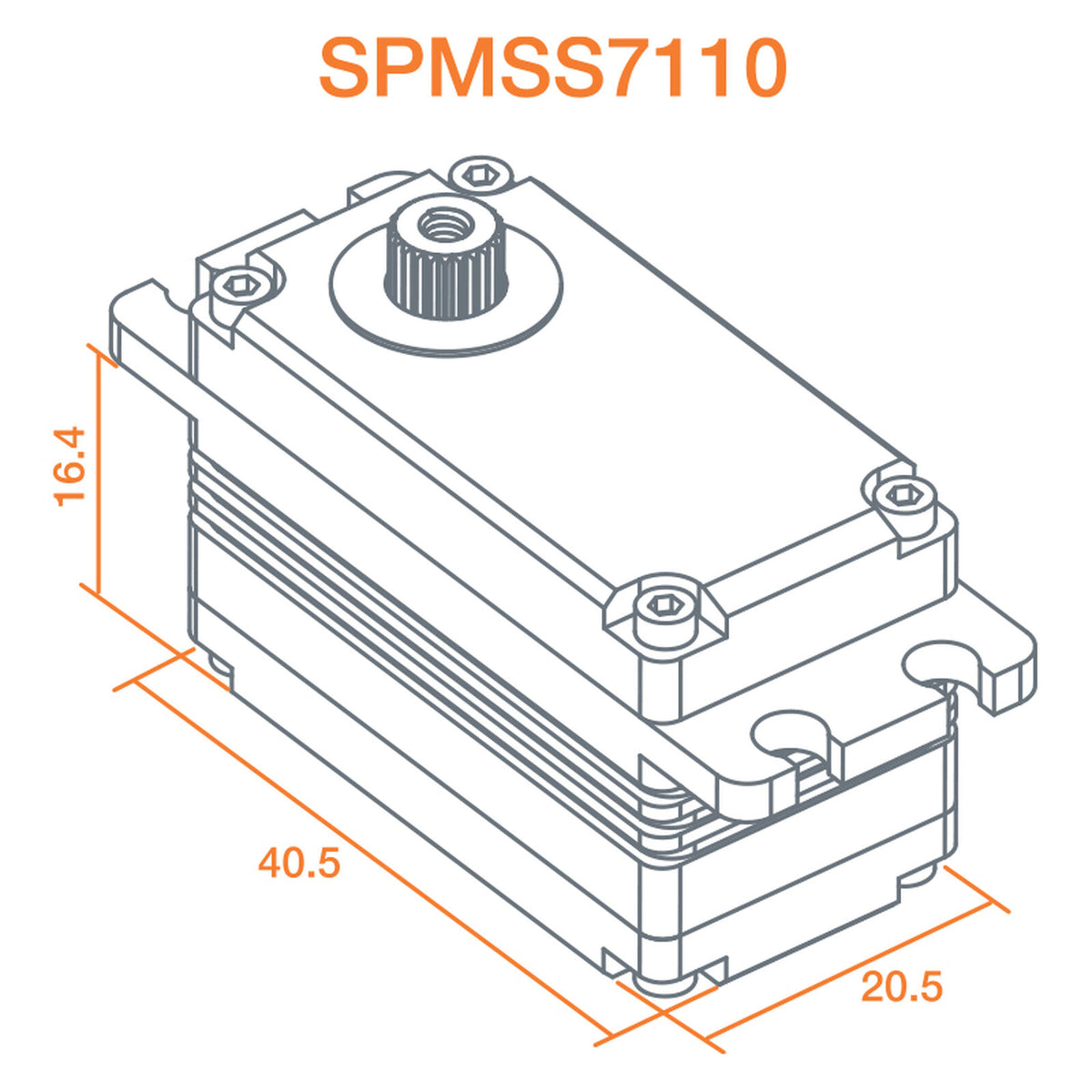

- Product Height0.99" (25 mm)
- Product Length1.59" (40 mm)
- Product Weight2oz (57g)
- Product Width0.8" (20 mm)
- ProgrammableNo
-
Prop 65
California Residents Prop 65 WARNINGS. - Rotation Range360 Degree Continuous
- Servo Operating Voltage6.0 - 8.4V (HV)
- Servo Size CategoryLow Profile
- Servo TypeDigital
- Spline Count25 - Tooth
- Wire Gauge22 AWG
