REEFS | SKU:
SEHREEFS79

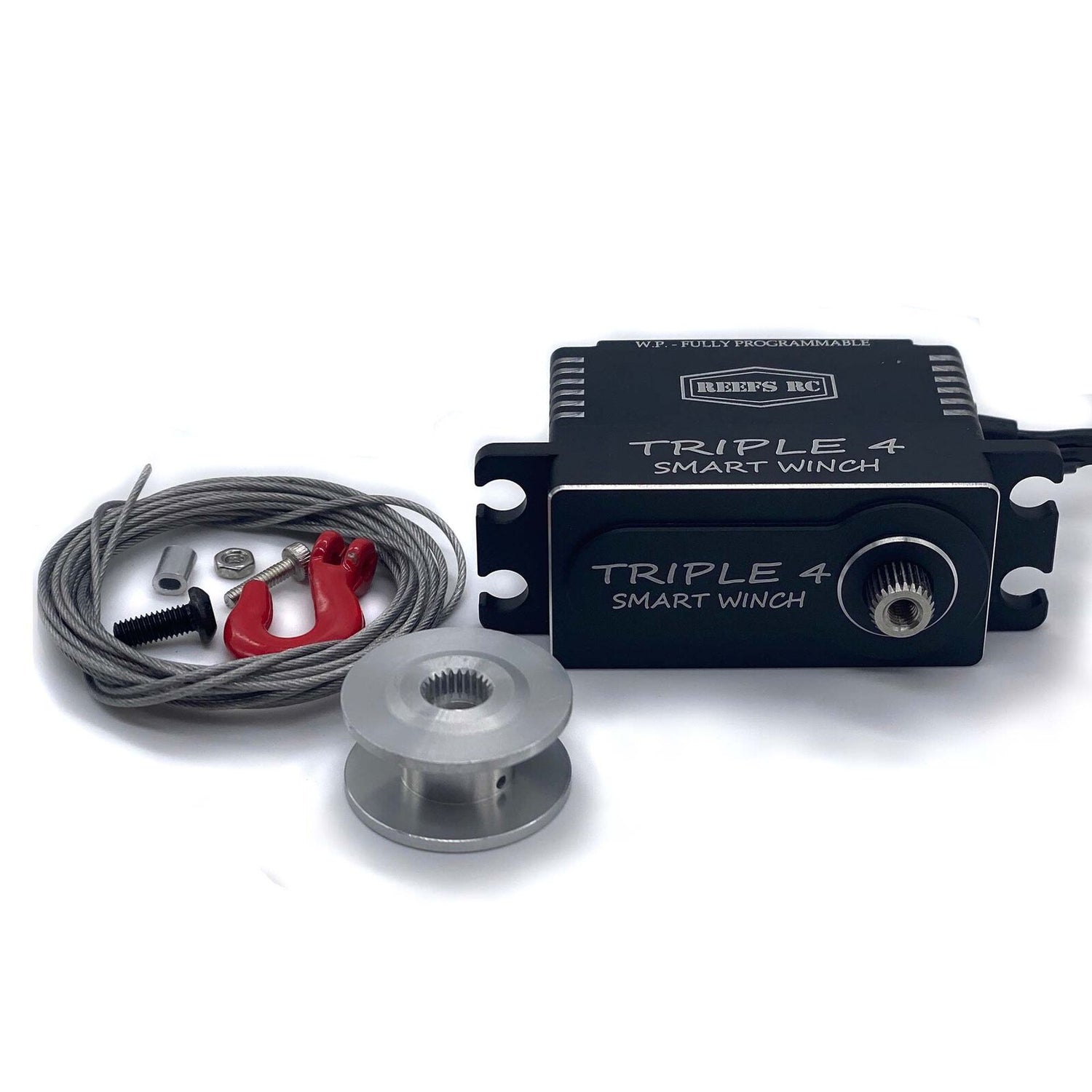

SEHREEFS79 RC Triple4 Digital Metal Gear Waterproof Programmable Winch Servo, Black
Regular price
$139.99
Unit price
/
Unavailable
SEHREEFS79 RC Triple4 Digital Metal Gear Waterproof Programmable Winch Servo, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SEHREEFS79 RC Triple4 Digital Metal Gear Waterproof Programmable Winch Servo, Black Features
- The Triple4 Smart Winch can be used as a winch or steering servo!
- Switch from winch to steering servo with a couple clicks on the REEFS Software!
- Fully Programmable
- High Torque High Speed
- Brushless Servo or Servo Winch
- 7075 LowPro CNC Spool with Clear Finish
- 7' Silicone Coated Steel Braided Line with Scale Recovery Hook
- Magnetic Angle Sensor
- REEFS LINK required for Programming
- Internal: Steel Gears
- CNC Aluminum Casing
REEFS RC Triple4 Digital Metal Gear Waterproof Programmable Winch Servo, Black Product Specs
- Application1/10 Rock Crawlers- Winch/Steering
- BearingDual Ball Bearings
- Bushing Or BearingBearing
- Connector TypeUniversal
- Deadband2µs
- Gear TypeMetal
- Input Voltage4.8V ~ 8.4V
- Maximum Servo Speed0.09 sec/60 deg @ 4.0V, 0.08 sec/60 deg @ 7.4V, 0.068 sec/60 deg @ 8.4V
- Maximum Servo Torque350oz/in @ 6V, 420oz/in @7.4V, 444oz/in @ 8.4V
- Part TypeElectronics
- Product Height1.16" (29 mm)
- Product Length1.6" (41 mm)
- Product Weight2.3oz (65g)
- Product Width0.79" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 8.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count25 - Tooth
- Water-ResistantYes
