REEFS | SKU:
SEHREEFS135

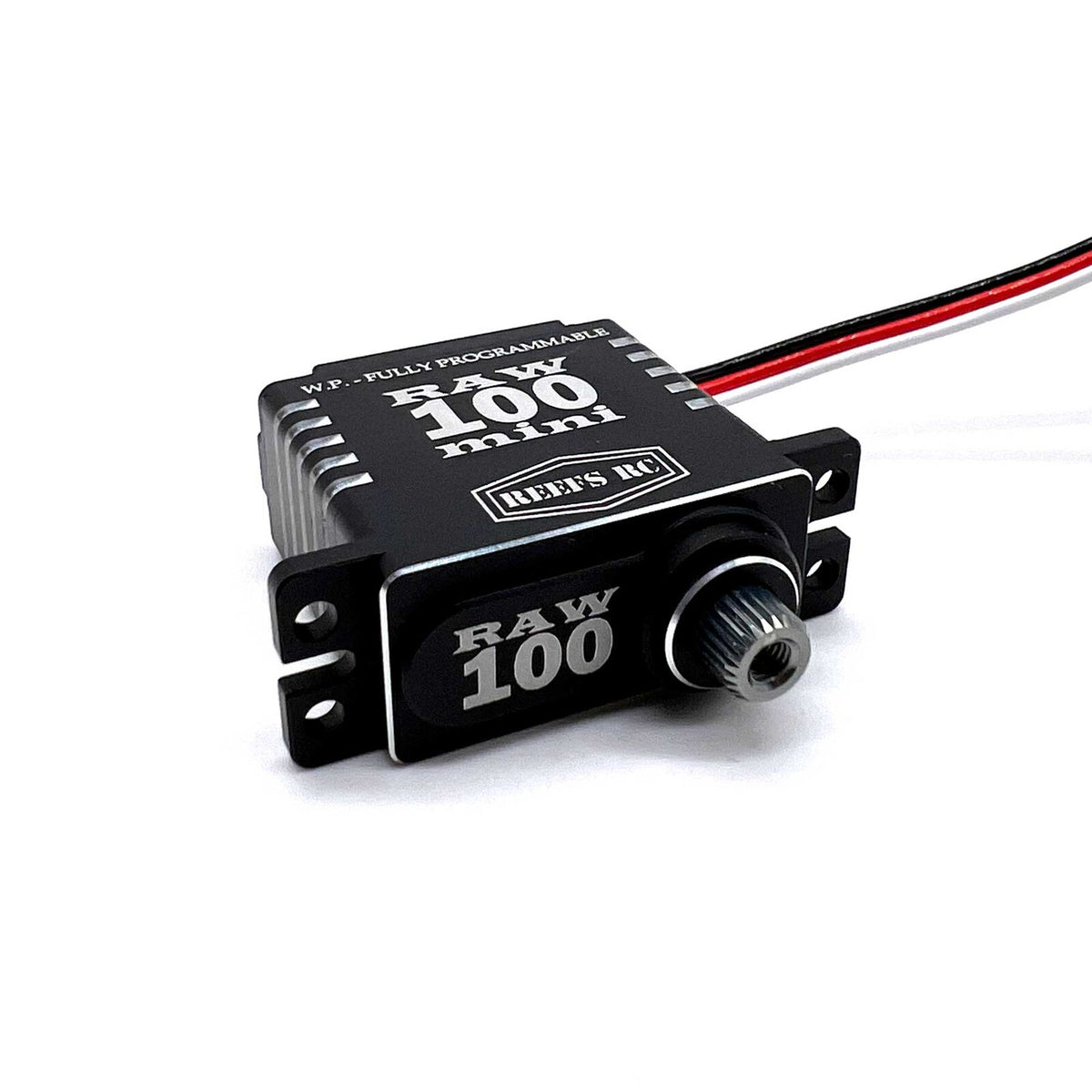

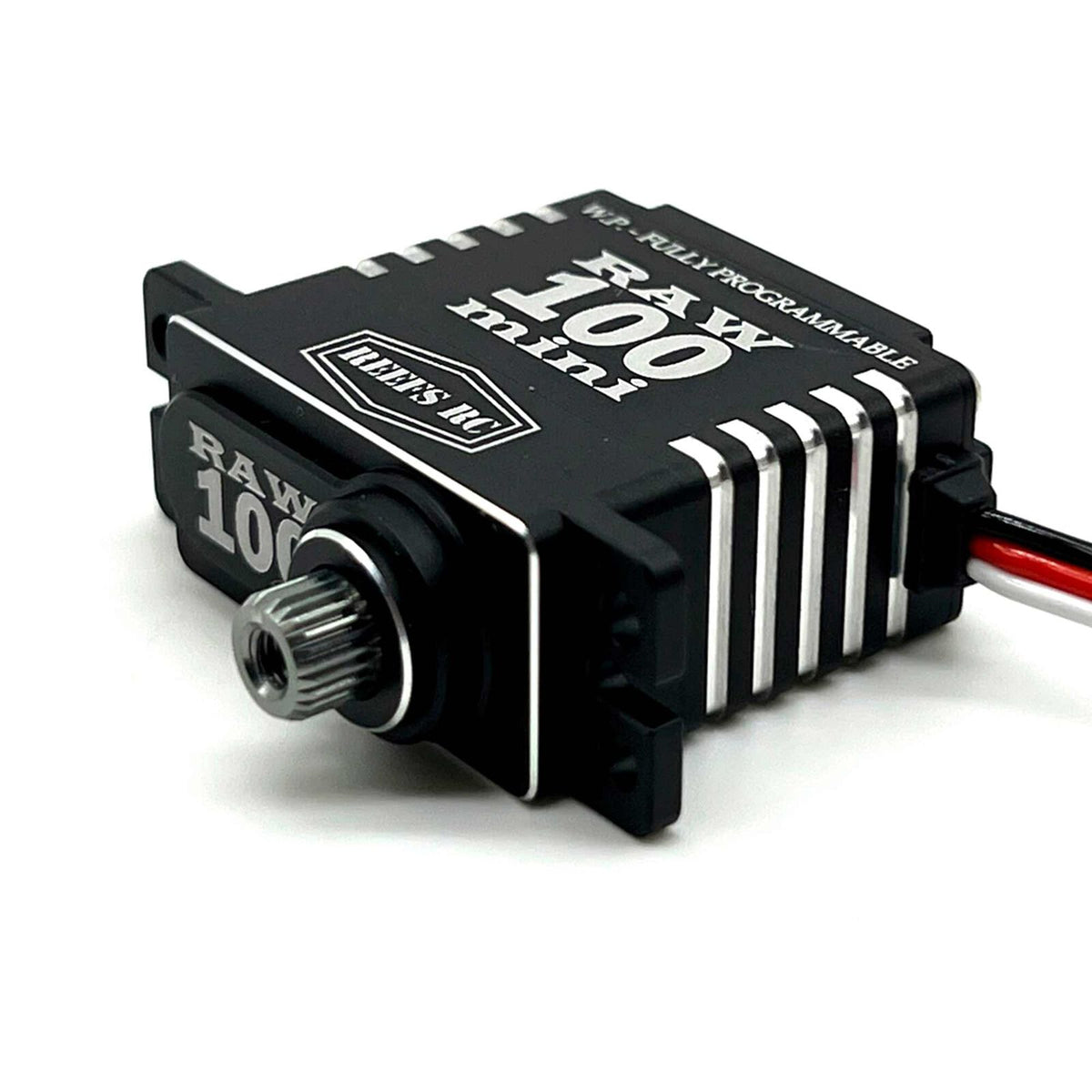

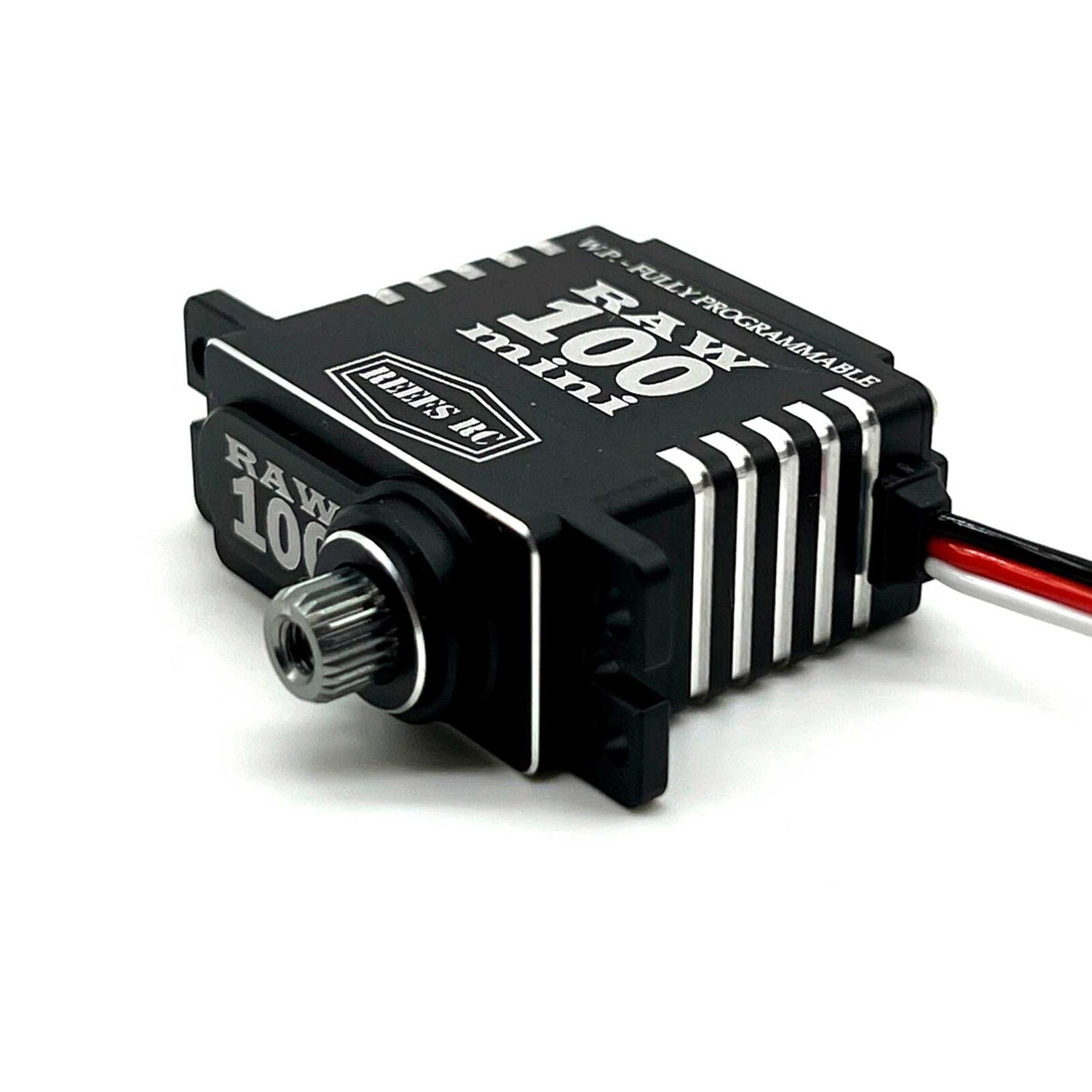

SEHREEFS135 RC RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black
Regular price
$84.99
Unit price
/
Unavailable
SEHREEFS135 RC RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SEHREEFS135 RC RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black
- Mini Coreless Servo
- SUBMARINE WATERPROOF
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
- Mini Coreless Servo
- SUBMARINE WATERPROOF
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
REEFS RC RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black Product Specs
- Application1/14 - 1/16 Cars, Trucks
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle180mA @ 4.8V, 200mA @ 6.0V, 230mA @ 7.4V, 260mA @ 8.4V
- Current Draw Stall1.2A @ 4.8V, 1.4A @ 6.0V, 1.5A @ 7.4V, 1.8A @ 8.4V
- Deadband2µs
- Gear TypeMetal
- Maximum Servo Speed0.10 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V
- Maximum Servo Torque95oz/in @ 7.4V, 103oz/in @ 8.4V
- Product Height1.14" (29 mm)
- Product Length1.16" (29 mm)
- Product Weight1.05oz (30g)
- Product Width0.55" (14 mm)
- ProgrammableYes
- Servo Operating Voltage6.0 - 8.4V (HV)
- Servo Size CategoryMini
- Servo TypeDigital
- Spline Count25 - Tooth
- Water-ResistantYes
