REEFS | SKU:
SEHREEFS116

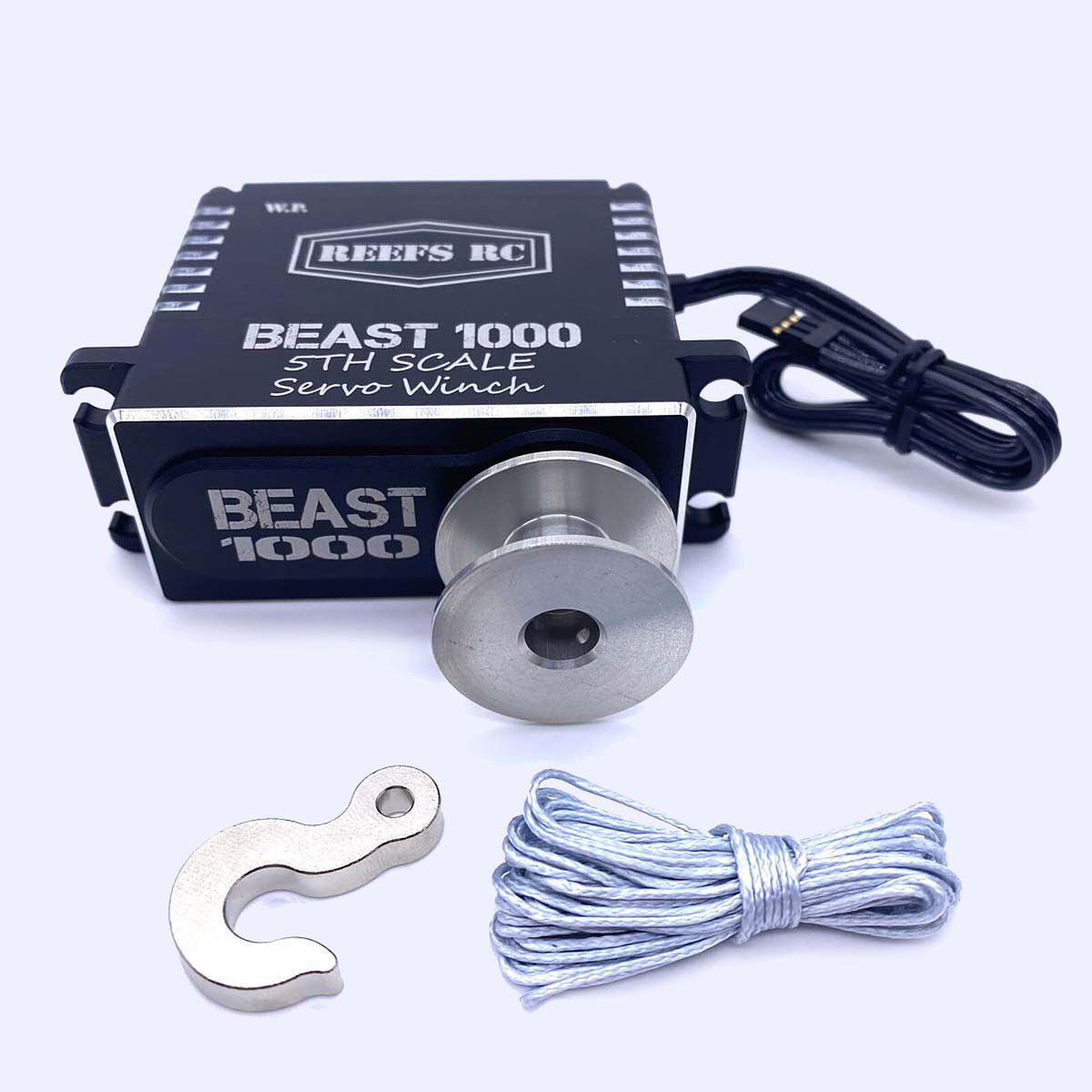

SEHREEFS116 RC Beast 1000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black
Regular price
$389.99
Unit price
/
Unavailable
SEHREEFS116 RC Beast 1000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SEHREEFS116 RC Beast 1000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
REEFS RC Beast 1000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black Product Specs
- Application1/5 Rock Crawlers- Winch/Steering (Programmable)
- Bearing5 Ball Bearings
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle460mA @ 4.8V, 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
- Current Draw Stall5.4A @ 4.8V, 6.0A @ 6.0V, 6.8A @ 7.4V, 7.5A @ 8.4V
- Deadband2µs
- Gear TypeMetal
- Input Voltage4.8V ~ 8.4V
- Maximum Servo Speed0.16 sec/ 60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V, 0.12 sec/60 deg @ 8.4V
- Maximum Servo Torque800oz/in @ 6V, 900oz/in @7.4V, 1080oz/in @ 8.4V
- Product Height2.32" (59 mm)
- Product Length2.59" (66 mm)
- Product Weight10oz (285g)
- Product Width1.18" (30 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 8.4V (HV)
- Servo Size CategoryGiant Scale
- Servo TypeDigital
- Spline Count15 - Tooth
- Water-ResistantYes
- Wire Gauge22 AWG
