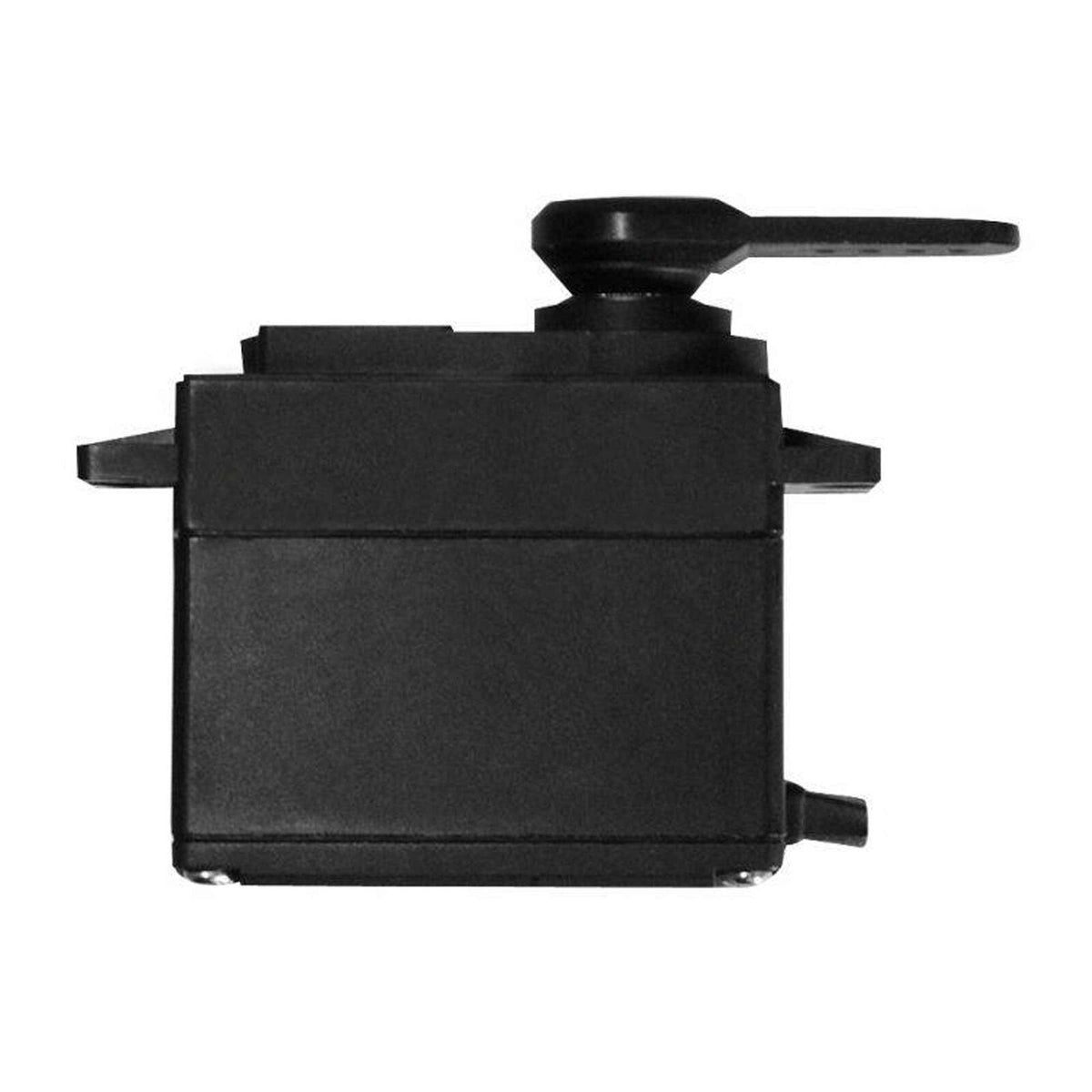

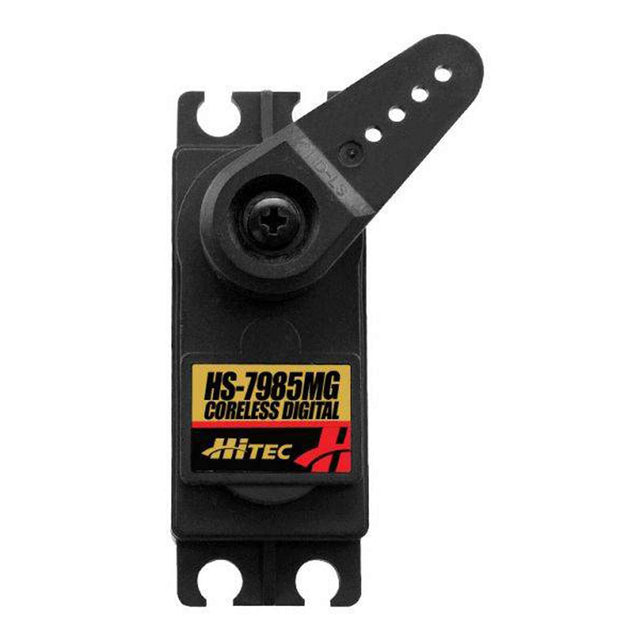

HRC37985S RCD Inc HS-7985MG Digital High Resolution High Torque Metal Gear Servo
HRC37985S RCD Inc HS-7985MG Digital High Resolution High Torque Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The new HS-7985MG High Torque Digital Servo has the added benefit of the new G2 second generation programmable digital circuit. This circuit has twice the resolution of the original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and the Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.
- Speed: @4.8V .16sec/60' / @6.0V .13sec/60'
- Torque: @4.8V 144oz/in / @6.0V 172oz/in
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Metal Gear Train (MK first gear)
HRC37985S RCD Inc HS-7985MG Digital High Resolution High Torque Metal Gear Servo Product Specs
- ApplicationSport Aircraft, Helicopters, Cars, Boats
- BearingDual Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle9 mA
- Current Draw Stall3,000 mA
- Deadband1µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.16 sec/60 deg @ 4.8V, 0.13 sec/60 deg @ 6.0V
- Maximum Servo Torque144oz/in @ 4.8V, 172oz/in @ 6.0V
- Motor TypeBrushed

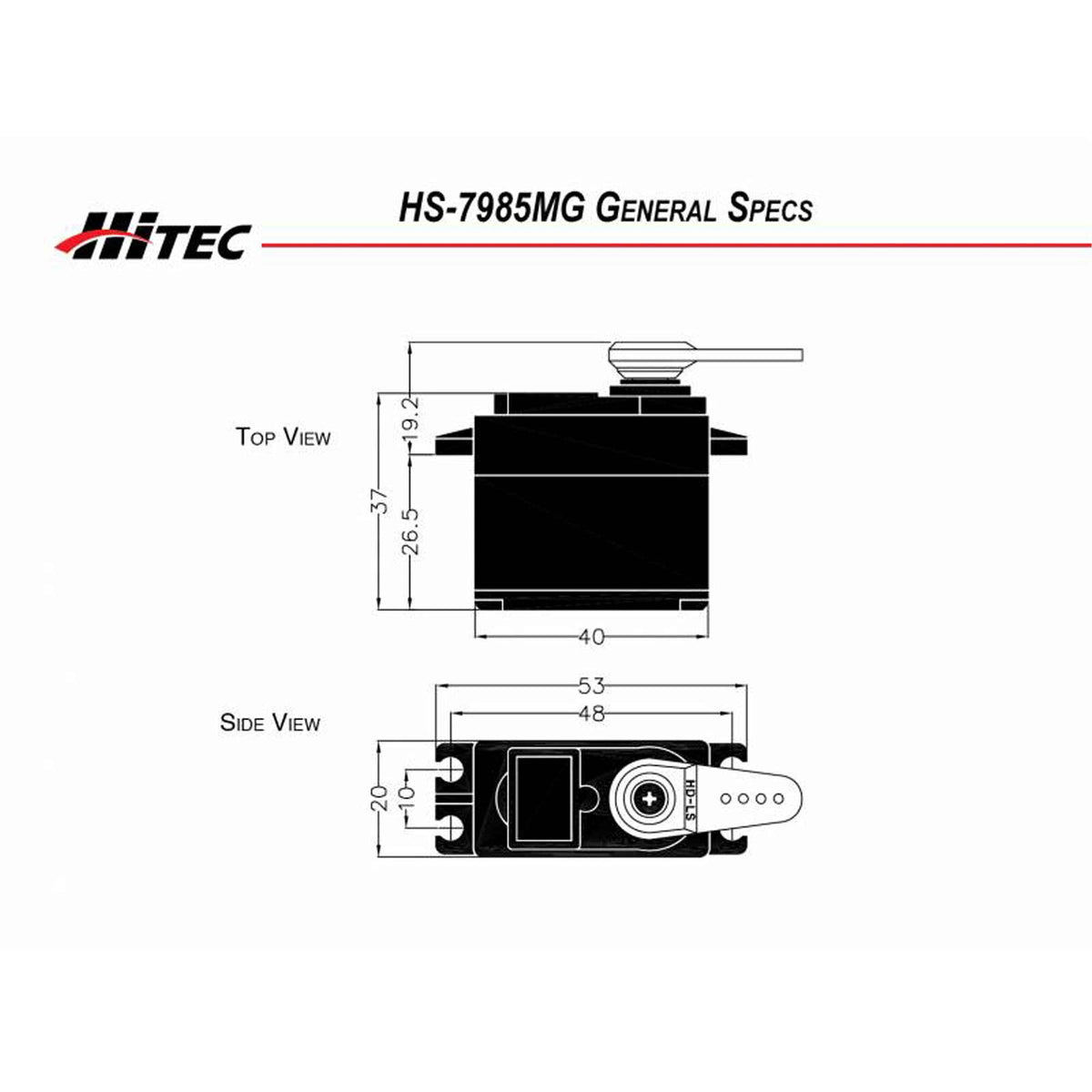

- Product Height1.45" (37 mm)
- Product Length1.57" (40 mm)

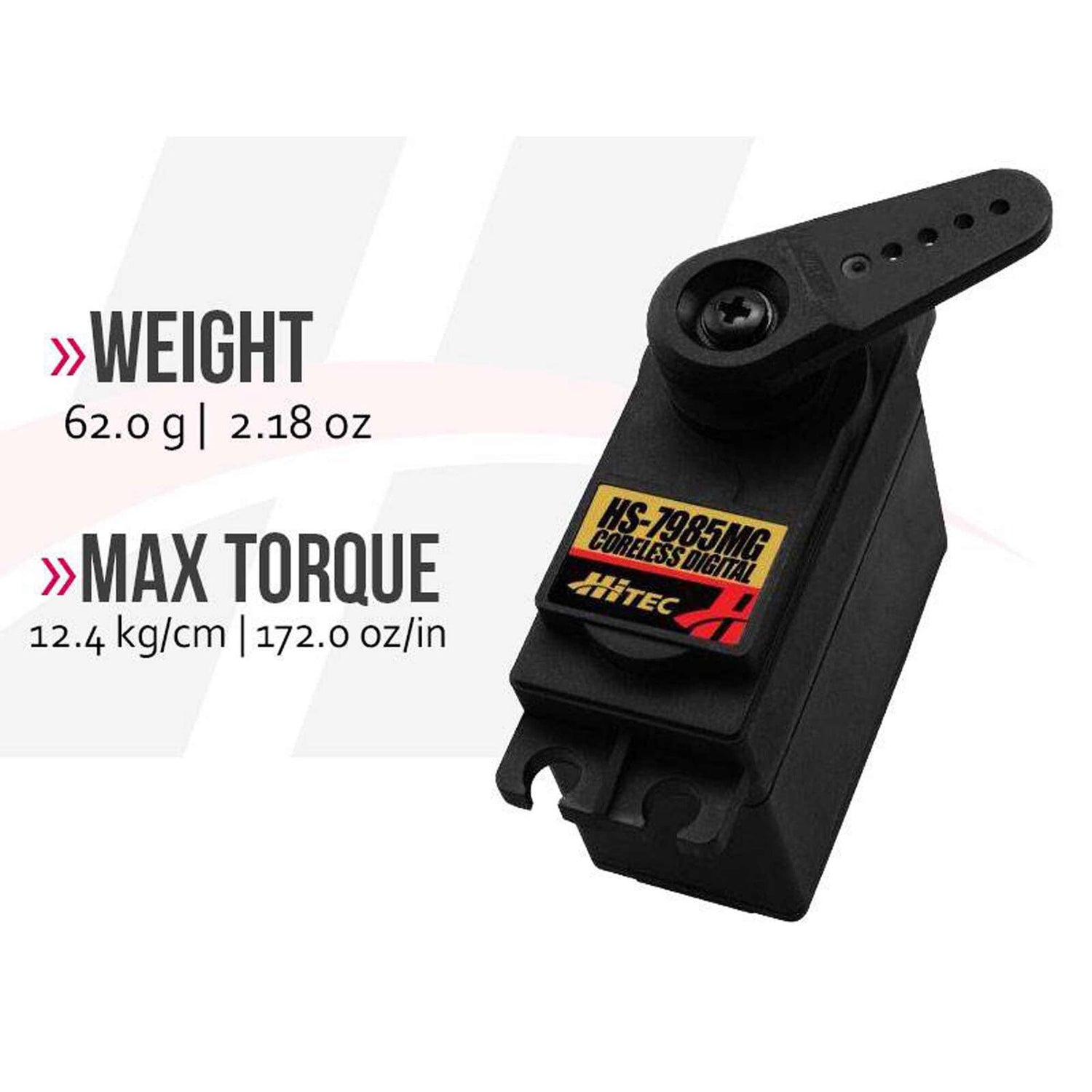

- Product Weight2.18oz (62.0g)
- Product Width0.78" (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryGiant Scale
- Servo TypeDigital
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge22 AWG
