HITEC | SKU:
HRC32225S

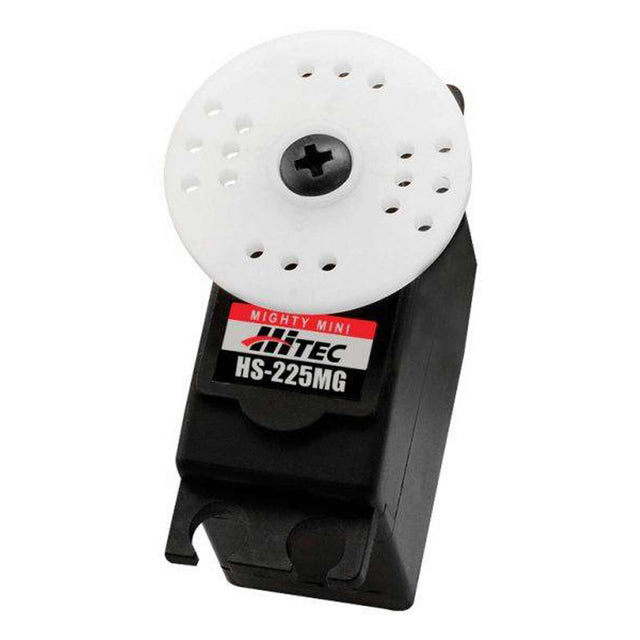

HRC32225S RCD Inc HS-225MG Mini Analog Metal Gear Servo
Regular price
$35.99
Unit price
/
Unavailable
HRC32225S RCD Inc HS-225MG Mini Analog Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
- Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
- Torque: @4.8V 54.15oz/in / @6.0V 66.65oz/in
- Full Size Performance in a Mini Package
- Durable Metal Gears
- Top Ball Bearings
- Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
HRC32225S RCD Inc HS-225MG Mini Analog Metal Gear Servo Product Specs
- ApplicationSmall Aircraft, Helicopters, Cars, Boats
- BearingTop Ball Bearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle8mA
- Current Draw Stall1,200 mA
- Deadband>5µs
- Gear TypeMetal
- Input Voltage4.8V ~ 6.0V
- Maximum Servo Speed0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V

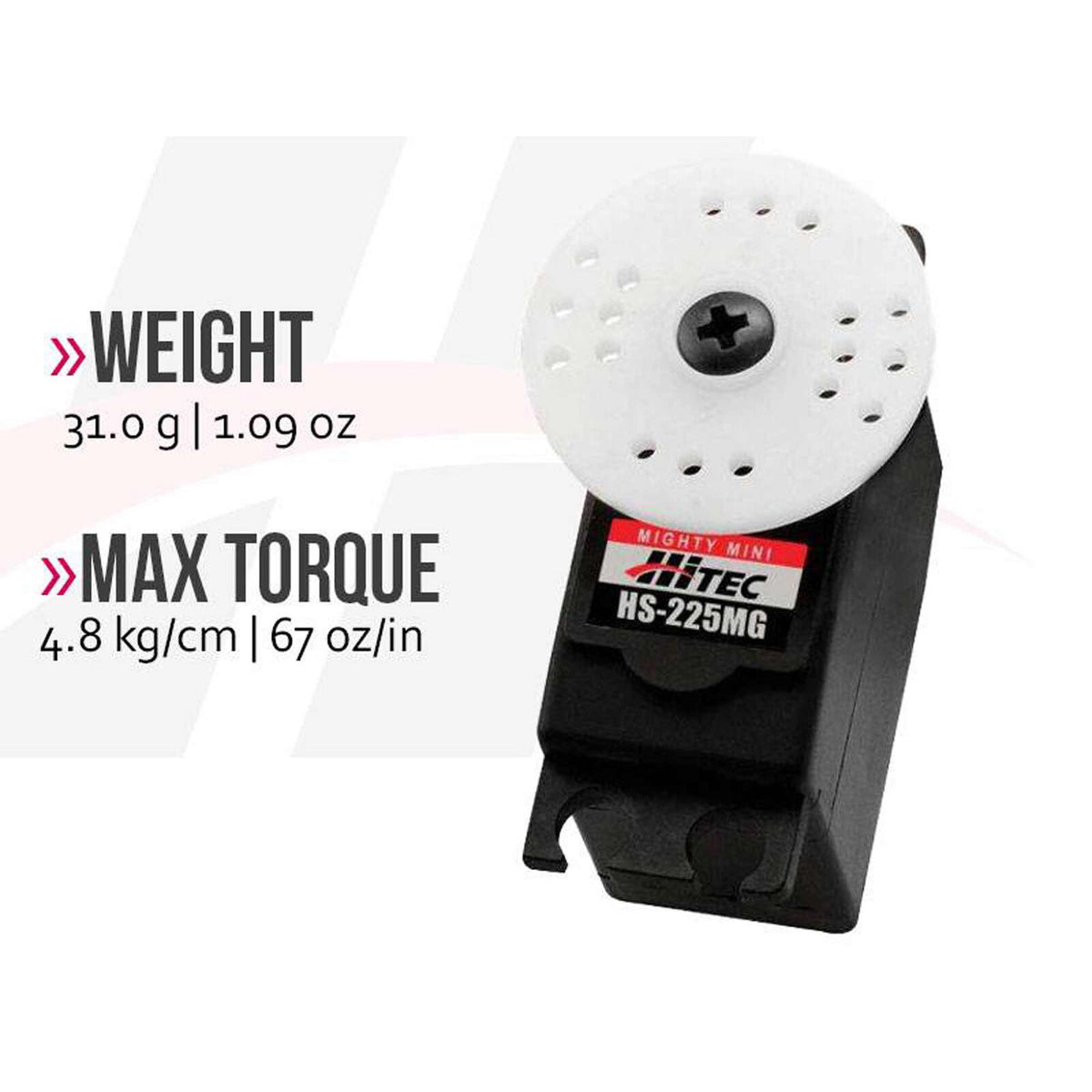

- Maximum Servo Torque54oz/in @ 4.8V, 67oz/in @ 6.0V
- Motor TypeBrushed

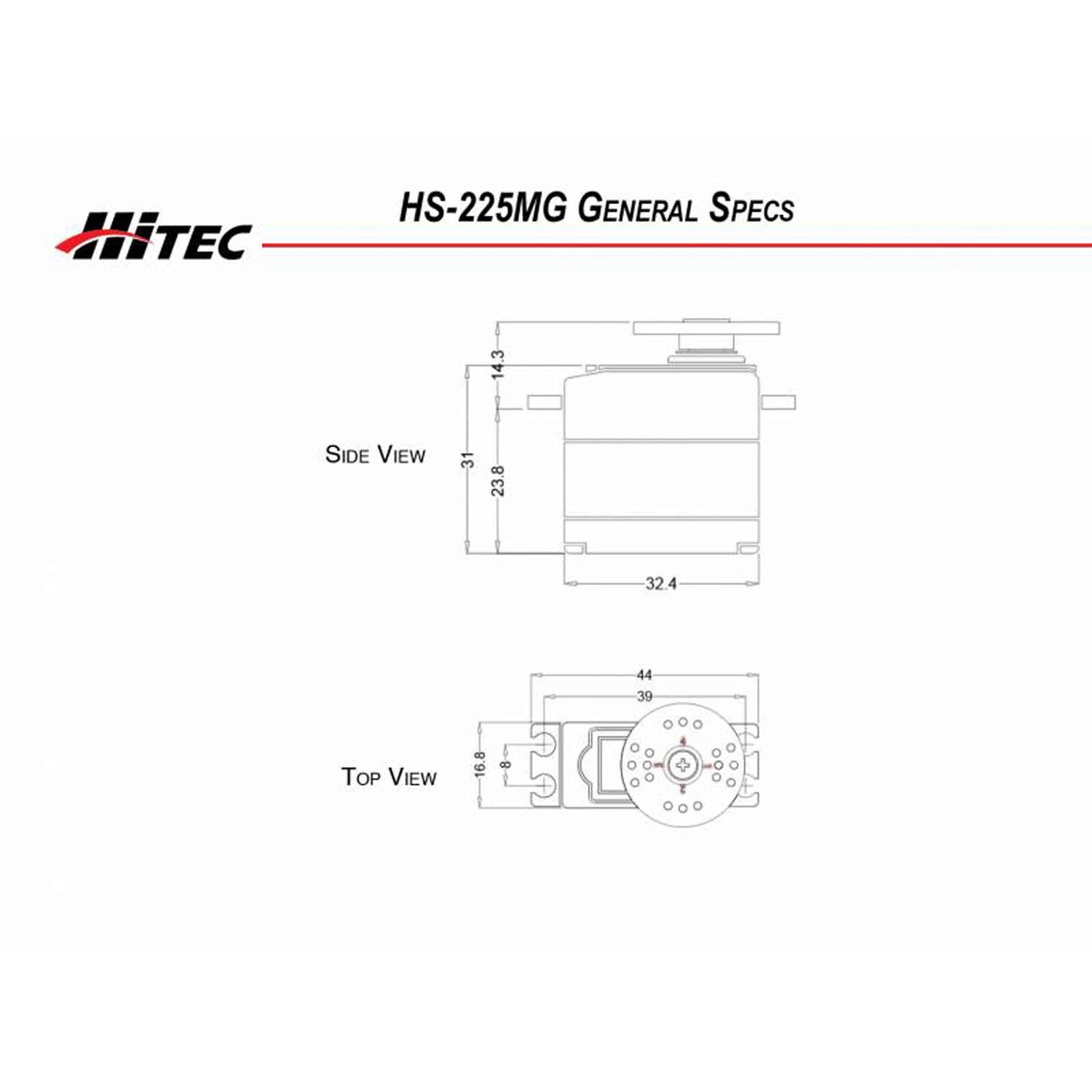

- Product Height1.22" (31 mm)
- Product Length1.27" (32 mm)
- Product Weight1.09oz (31.0g)
- Product Width0.66" (17 mm)
- ProgrammableNo
- Servo Operating Voltage4.8 - 6.0V
- Servo Size CategoryMini
- Servo TypeAnalog
- Spline Count24 - Tooth
- Water-ResistantNo
- Wire Gauge25 AWG
