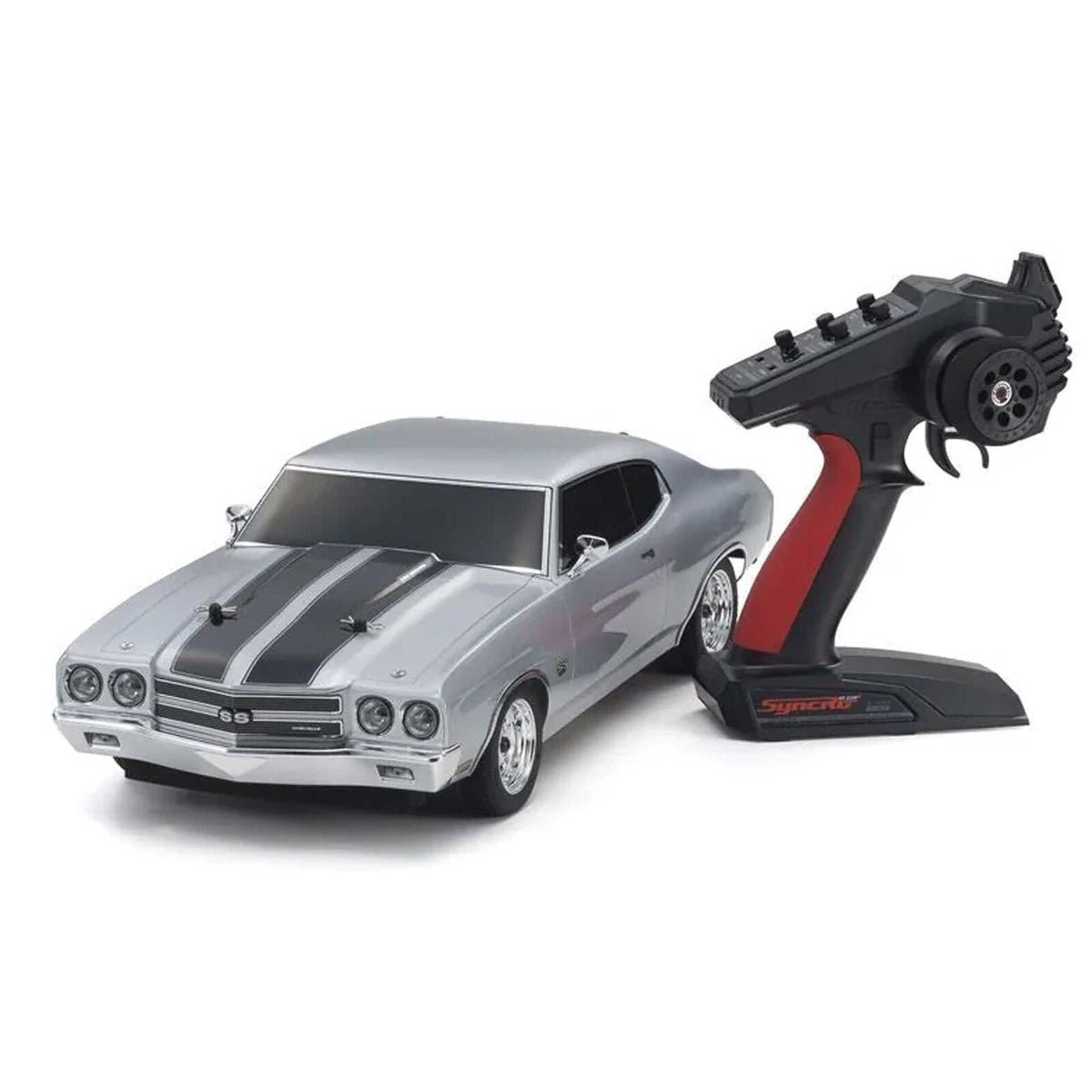

KYO34416T1C 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4x4 Electric Touring RTR, Cortez Silver
KYO34416T1C 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4x4 Electric Touring RTR, Cortez Silver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Now driving R/C is even more fun, the FZ02L chassis with realistic racing car body.
KYO34416T1C 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4x4 Electric Touring RTR, Cortez Silver Overview
For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can't be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials with ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition to the included body. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.
- Ultra Scale Body
- Factory-Assembled RTR Package
- Equipped With 2-Bevel Gear Diffs
- Full Ball Bearings
- KS202W Waterproof Steering Servo
Kyosho 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4x4 Electric Touring RTR, Cortez Silver Features
- Shaft drive full-time 4WD touring chassis.
- Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.

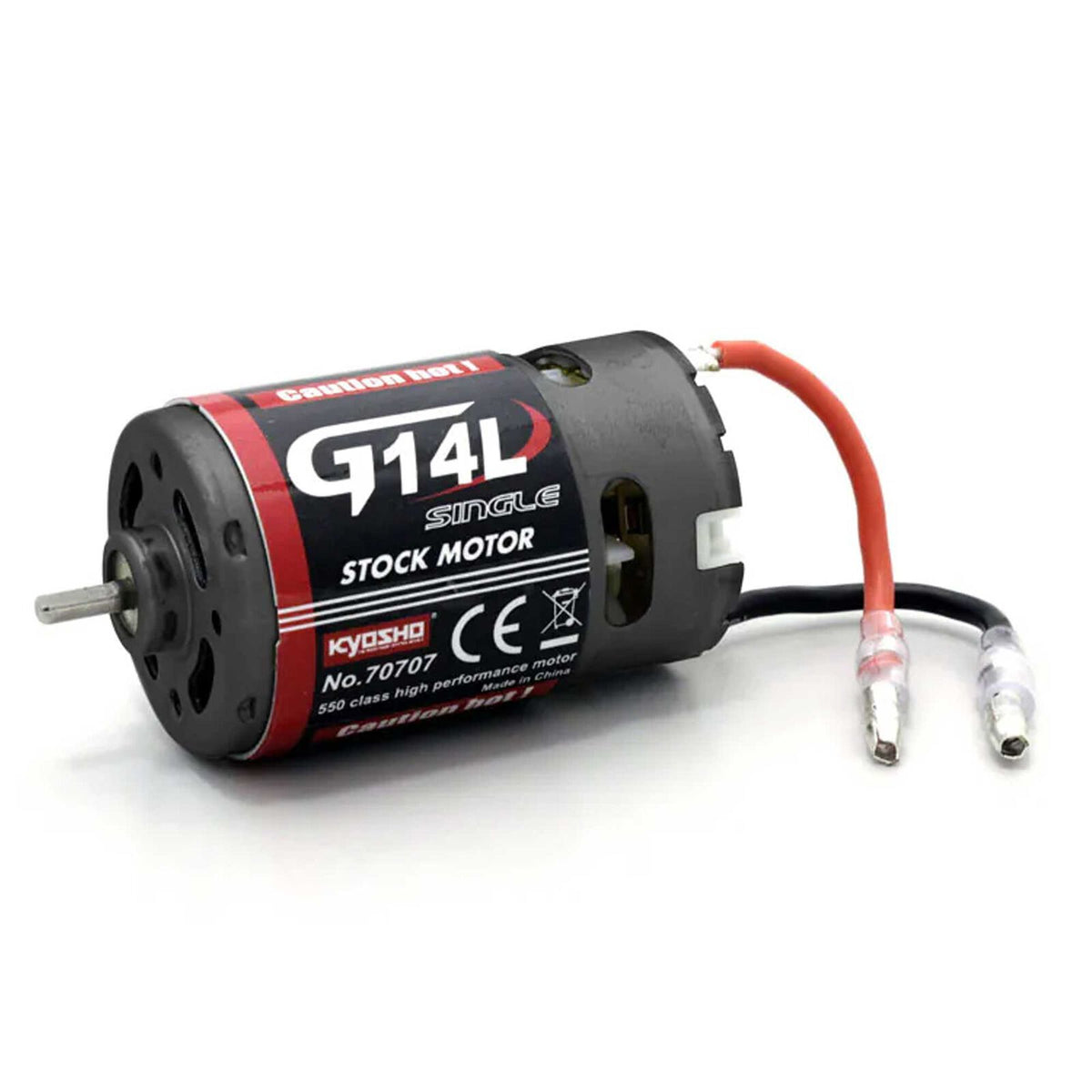

- Comes with the powerful 550 size 14T brushed motor(G14L). The long can with Steel ring and internal cooling fan provides efficient torque and high speeds.
- Equipped with 2-bevel grease-filled gear diffs on front and rear.
- Large sized dog bones and cup joints provide excellent reliability and durability.
- Strap battery mounting allows for various battery types to be used.
- Full ball bearings equipped throughout the drive system.
- Features KS202W waterproof steering servo.
- Includes completely finished body with color scheme and decals applied.
- Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
- Performance can be further enhanced by installing various optional parts.

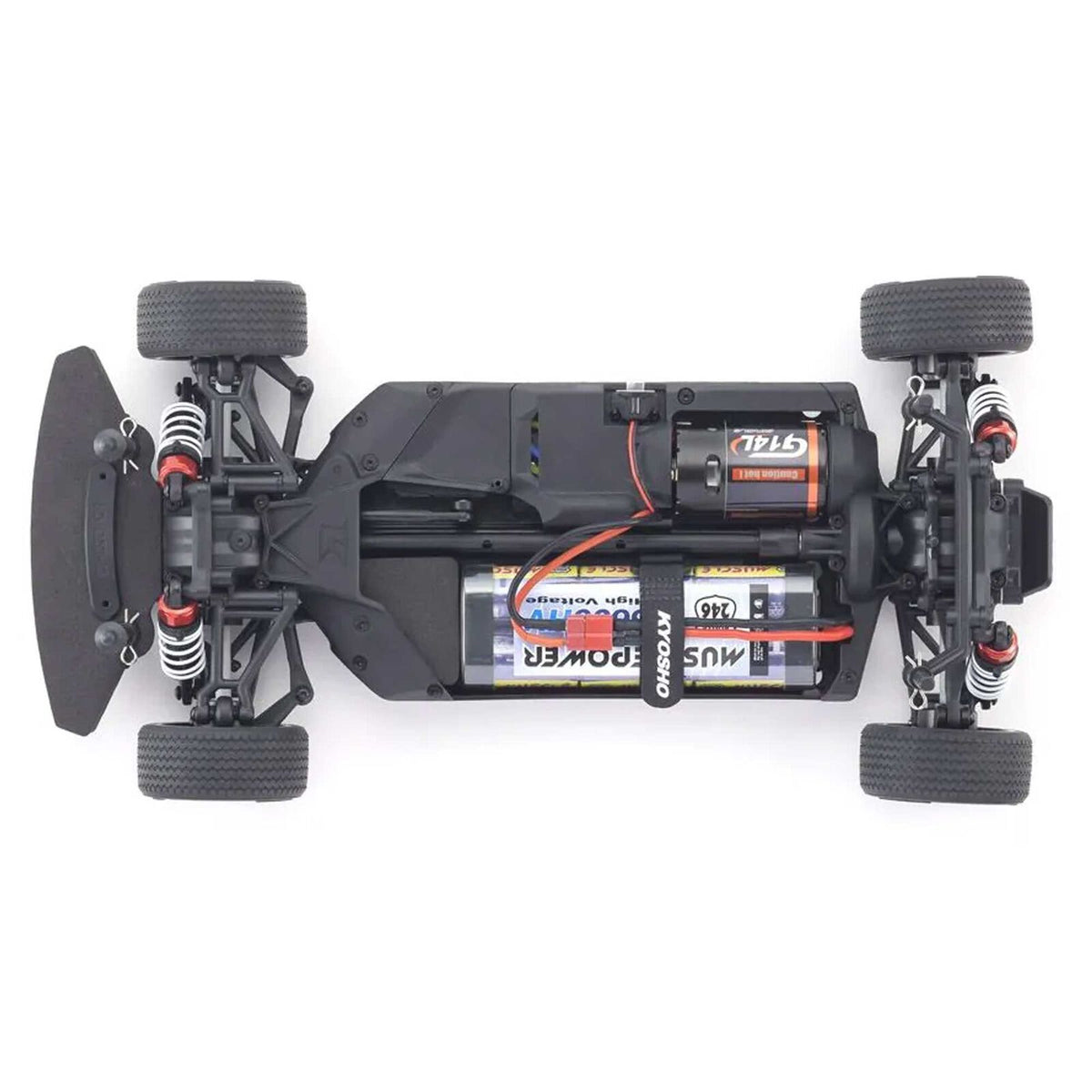

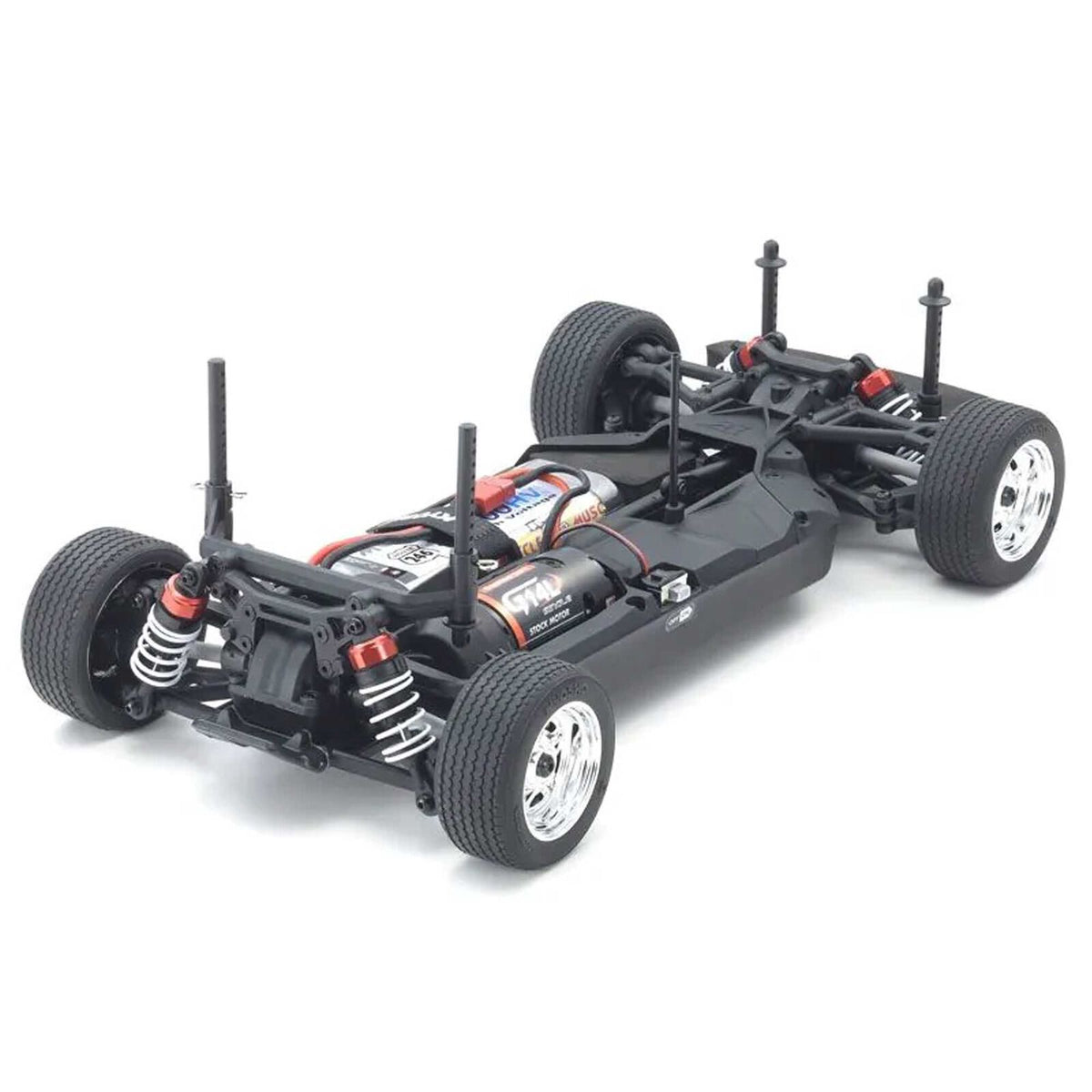

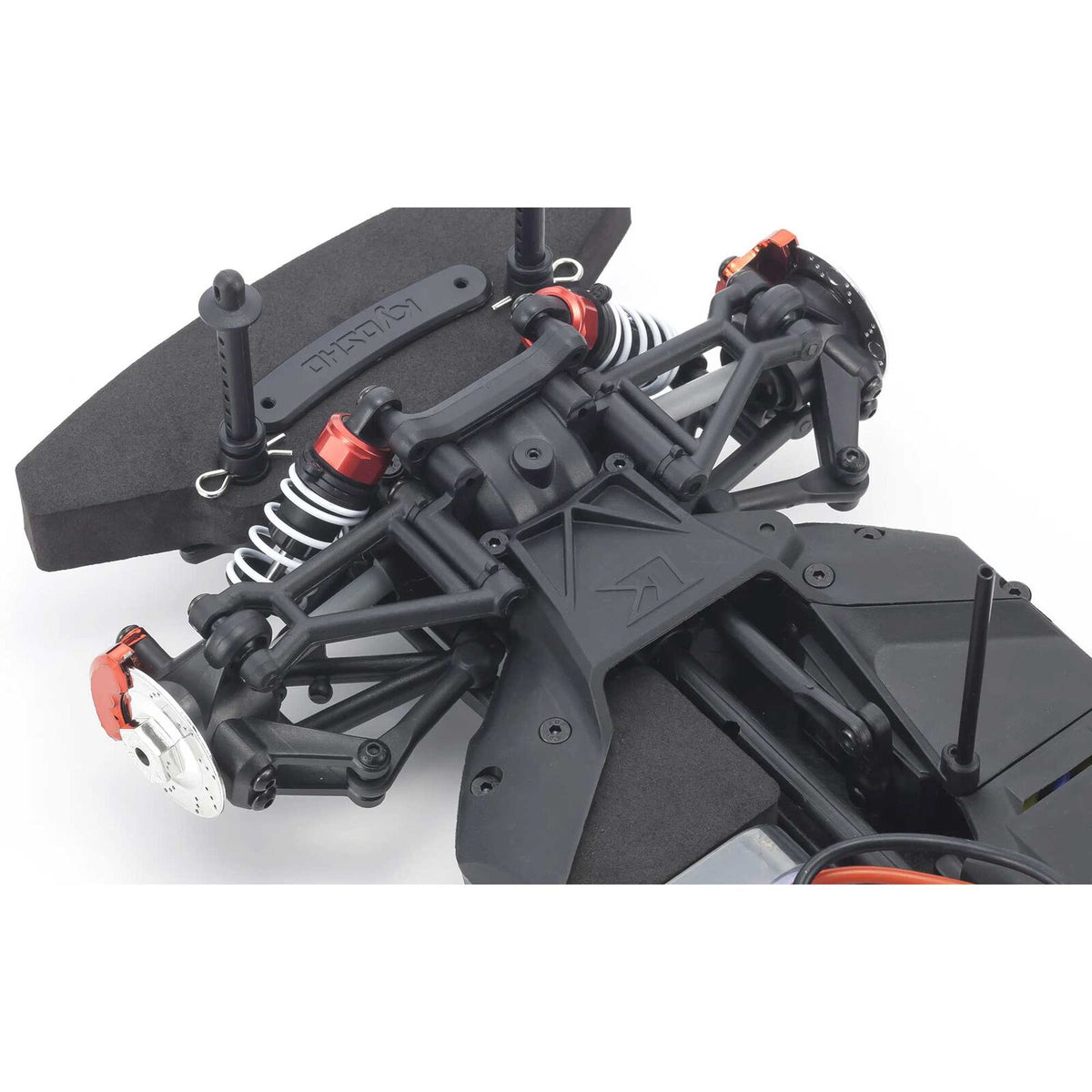

Chassis
Chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.
Hardware
Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.
Handling
Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

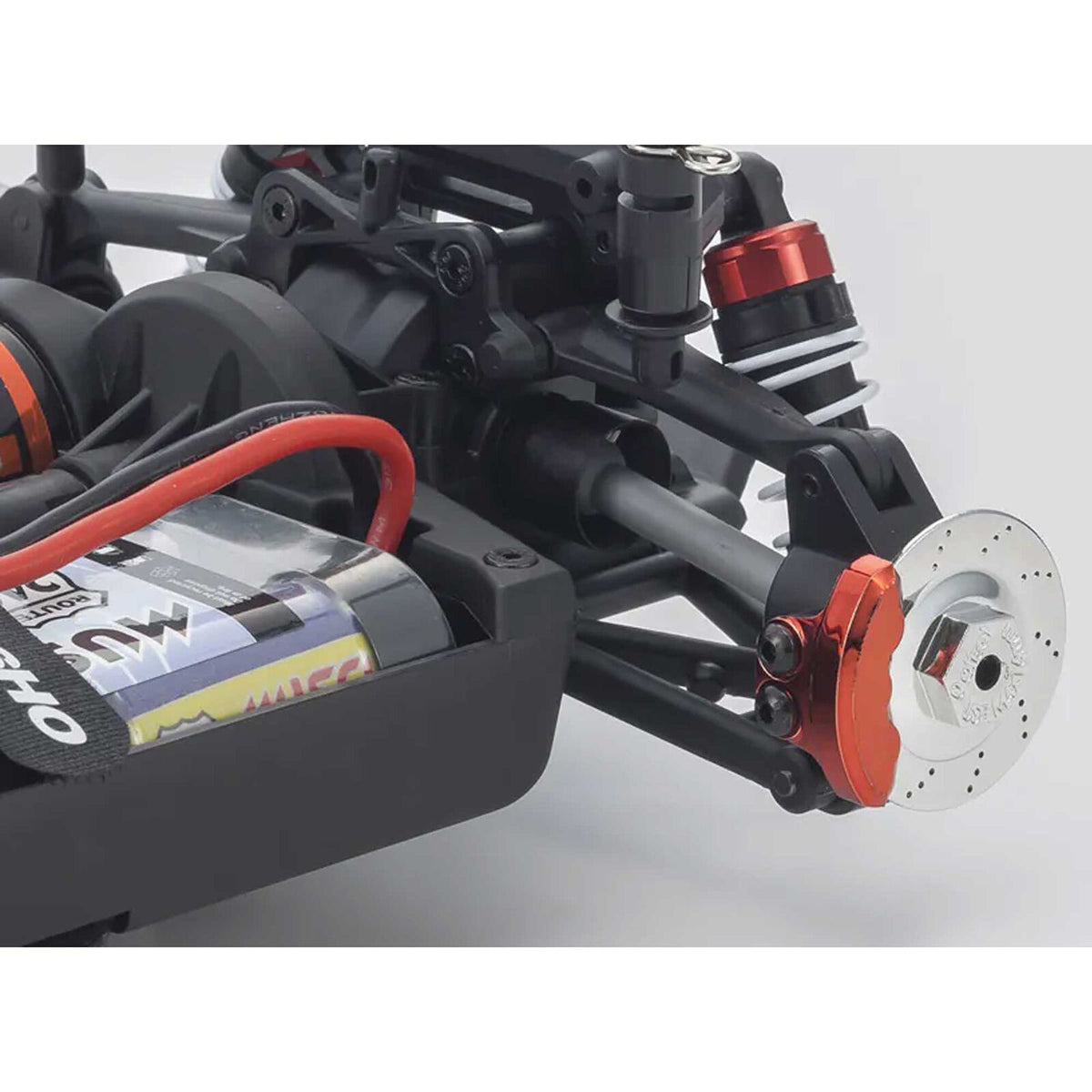

Dummy Calipers
Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

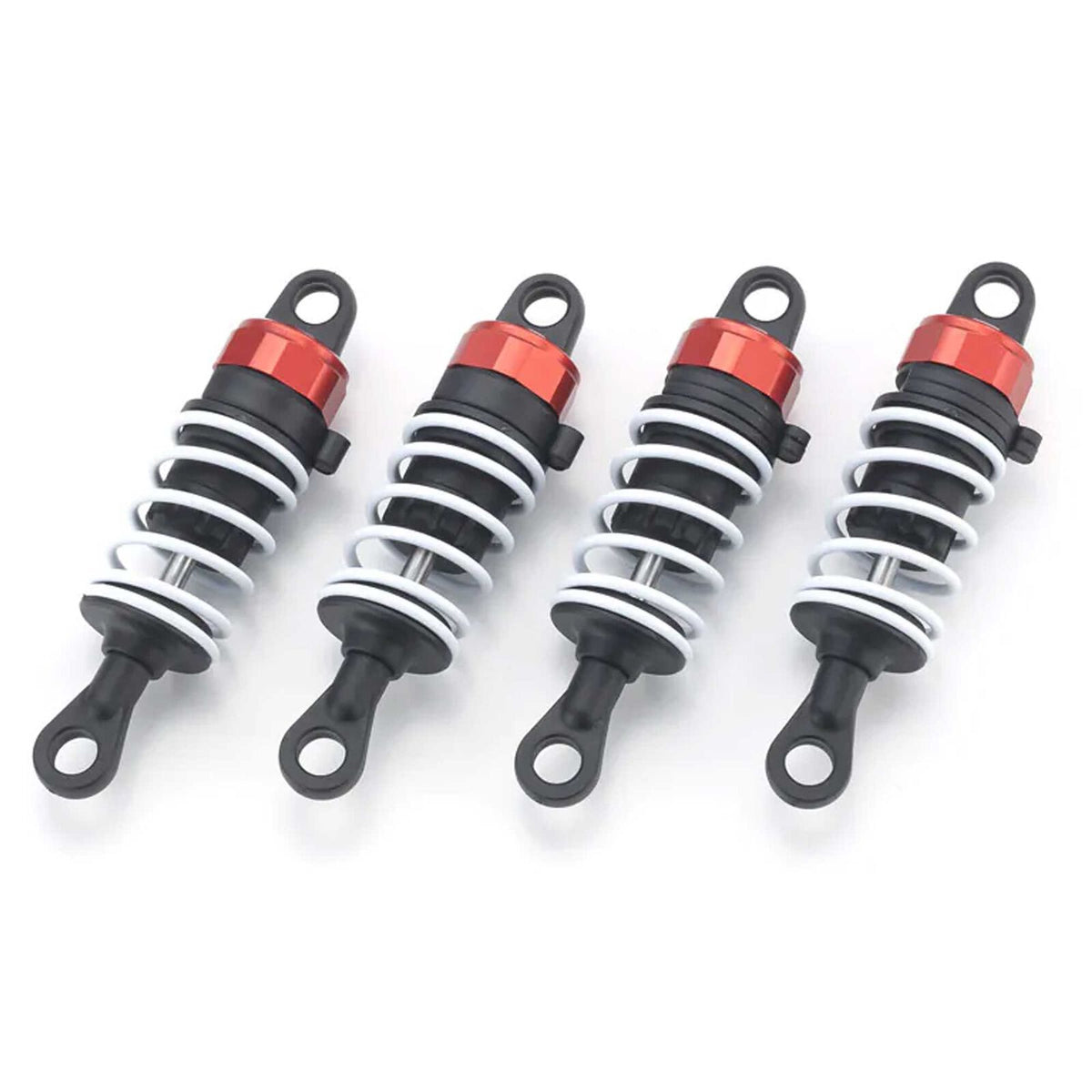

Oil Shocks
Oil shocks mark an evolutionary step up from previous models oil shocks. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

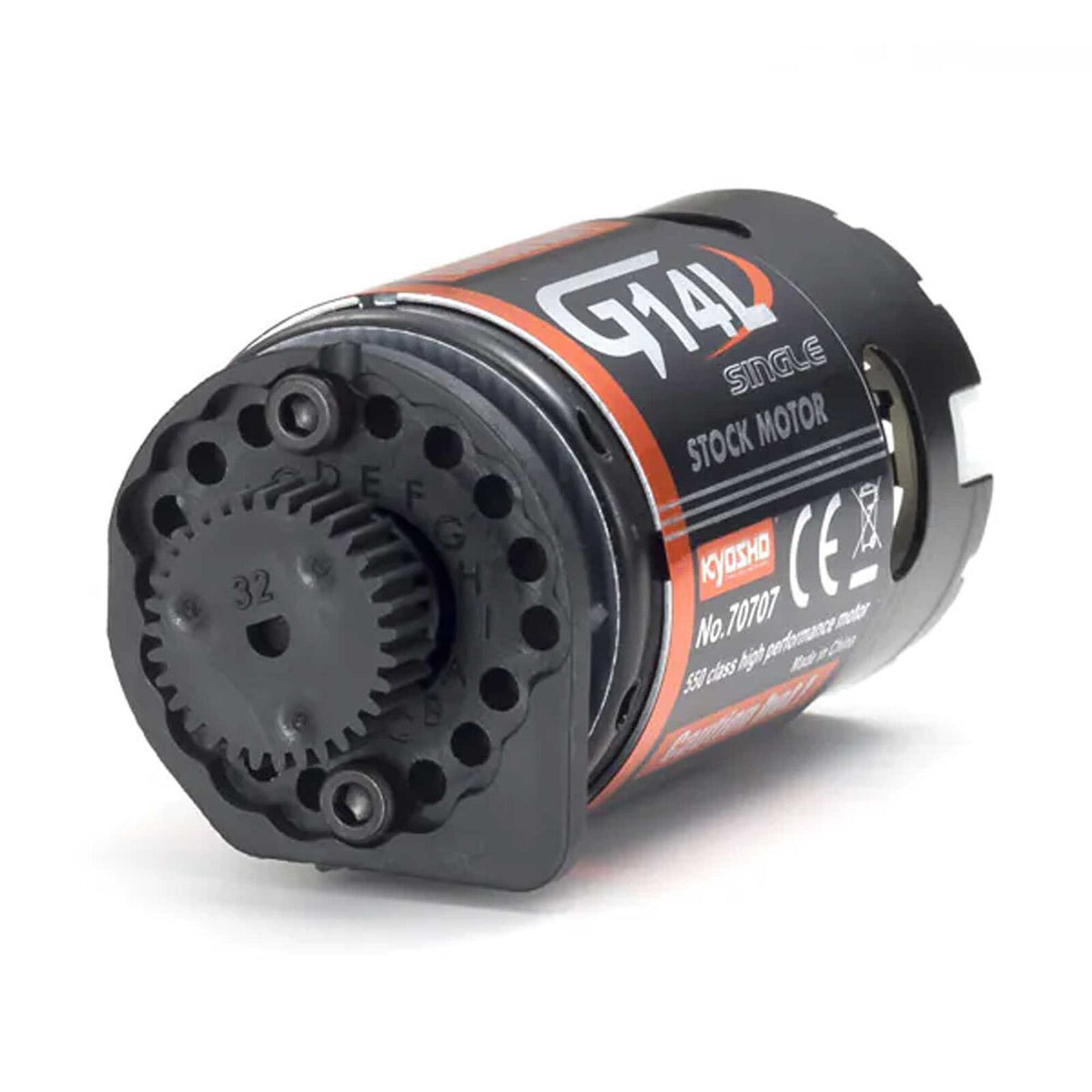

Pinion Gear
Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

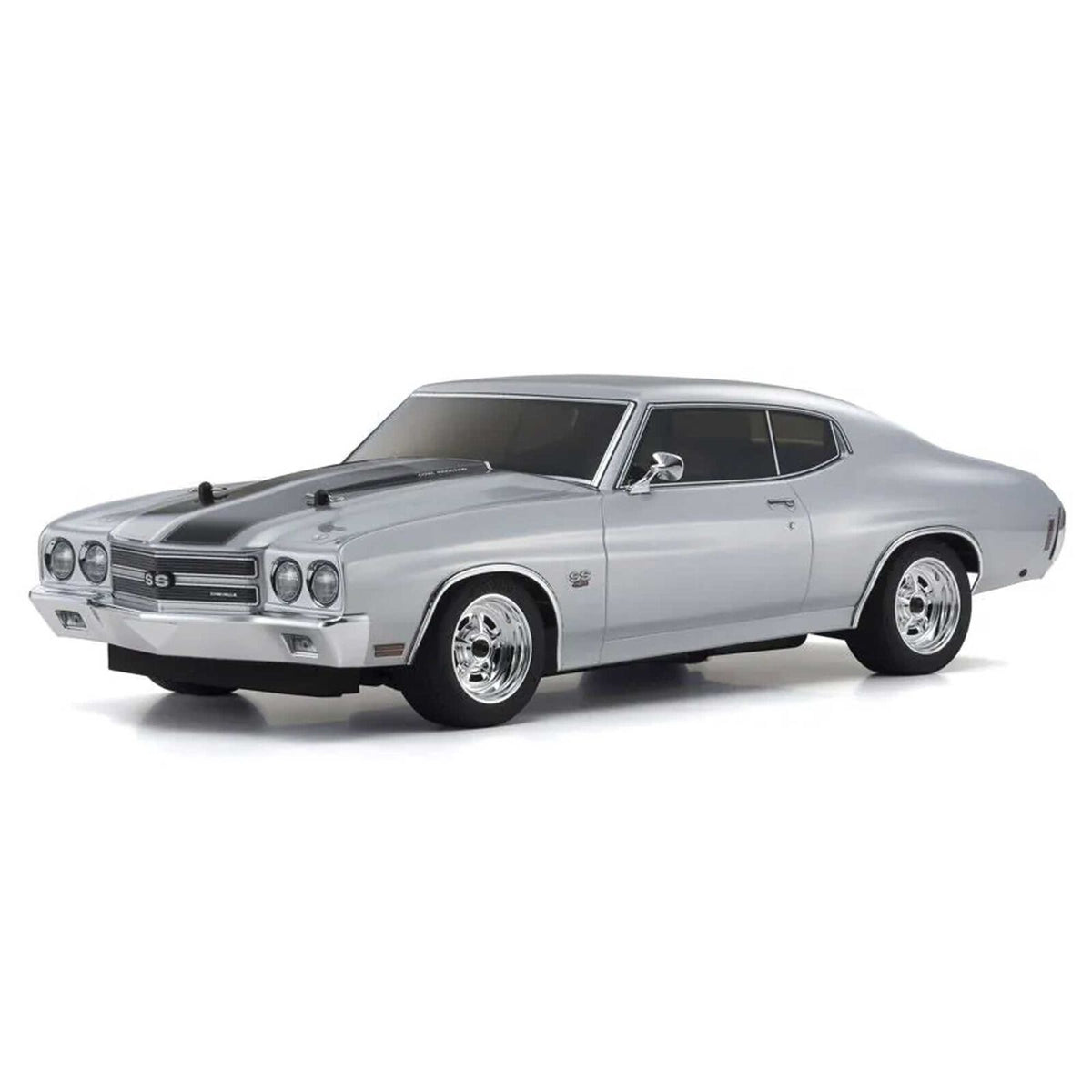

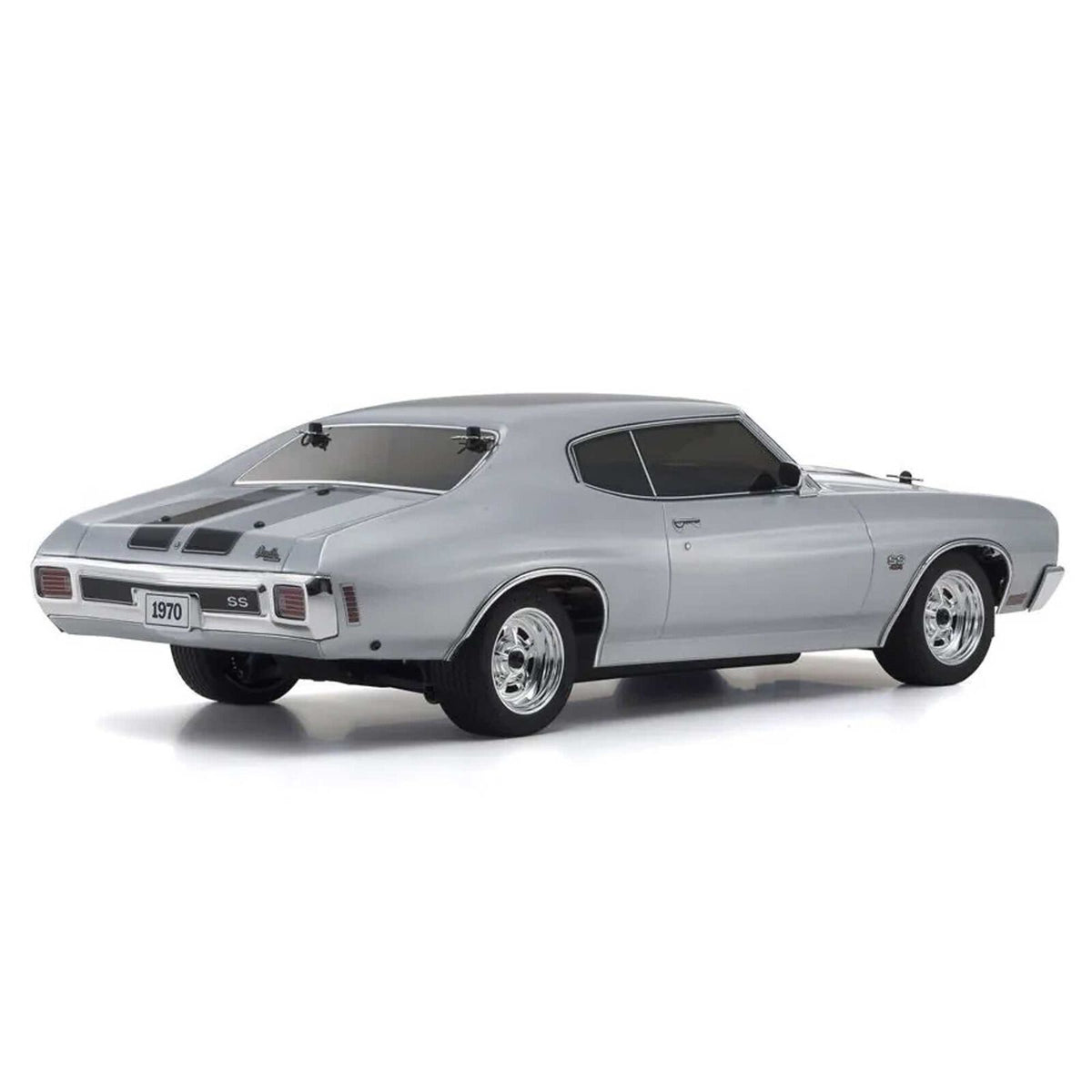

Detailed Body
Equipped with the ‘LS6' 7400cc V-type 8-cyclinder OHV engine that generated 450ps / 69.1kgm of maximum torque, the high-performance ‘SS' model of Chevrolet's legendary Chevelle was a force to be reckoned with. The 1970 model has been reproduced in 1/10 scale polycarbonate body featuring its signature 4 round headlights.

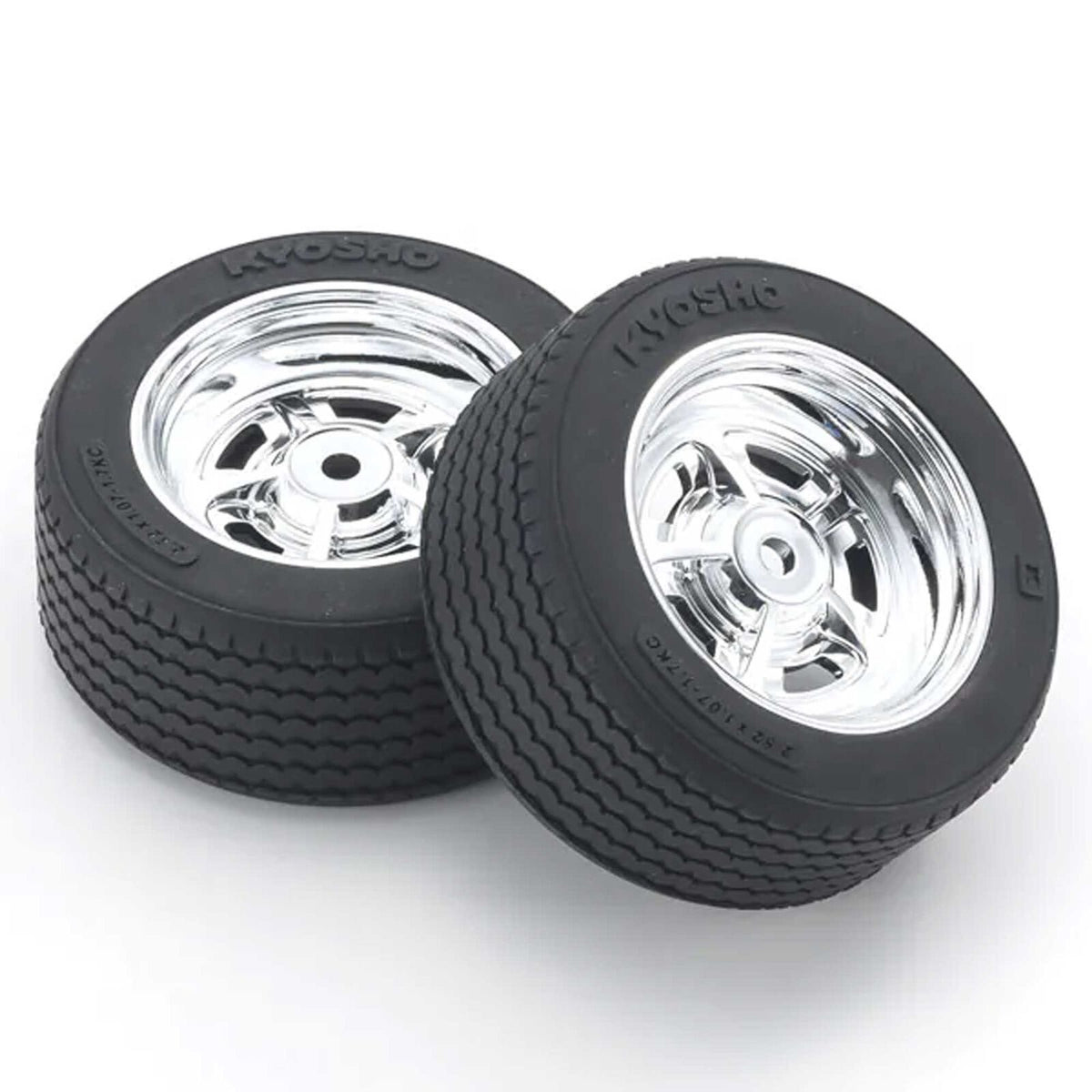

Wheels and Tires
Vintage Touring Car (VTC) tires and Rostyle type wheels to match vintage car style.
Kyosho 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4x4 Electric Touring RTR, Cortez Silver Product Specs
- Approximate Assembly TimeNo assembly required
- Ball BearingsFull bearings in driveline
- Battery2S LiPo, or 7.2 - 8.4V NiMH or NiCd (sold separately)
- BodyTrimmed and painted
- Bushing MaterialMetal
- ChargerSold Separately
- ChassisFAZER plastic bathtub type
- Completion LevelReady-To-Run
- DifferentialSealed bevel gear type
- Drivetrain4WD
- Final Drive Ratio6.5:1
- Ground ClearanceApproximately 0.39" (10mm)
- Manufacturer #34416T1C
- Max Battery Dimensions6.5 x 2.1" (165 x 54mm)
- Motor Size550
- Motor TypeBrushed
- Outer Diameter2.6 in (66mm)
- Pinion32T
- Power TypeElectric
- Product Height5.2" (132mm)
- Product Length19.1" (486mm)
- Product Weight3.3lbs (1500g)
- Product Width7.9" (200mm)
- RadioIncluded
- ReceiverIncluded
- Scale1/10
- ServosKyosho KS202W waterproof
- Shock TypeOil-filled coil over, rebuildable
- Speed ControlIncluded
- Spur Gear68T
- SuspensionFour wheel independent
- Tire TreadOn-Road
- Water-ResistantYes
- Wheel TypeRostyle type, 5 spoke chrome finish
- Wheel Width1.75" (44.4mm)
- Wheelbase10.8" (274mm)
