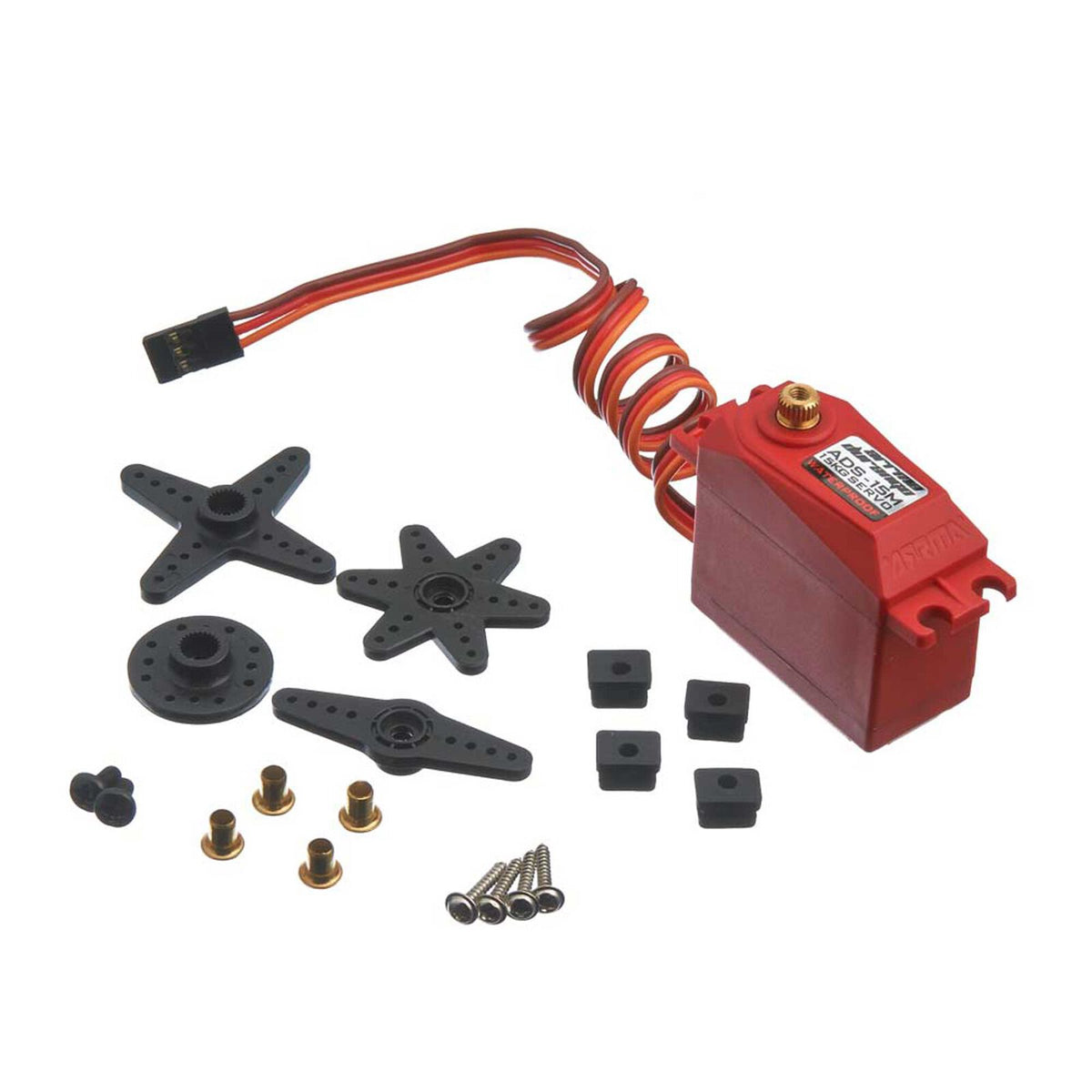

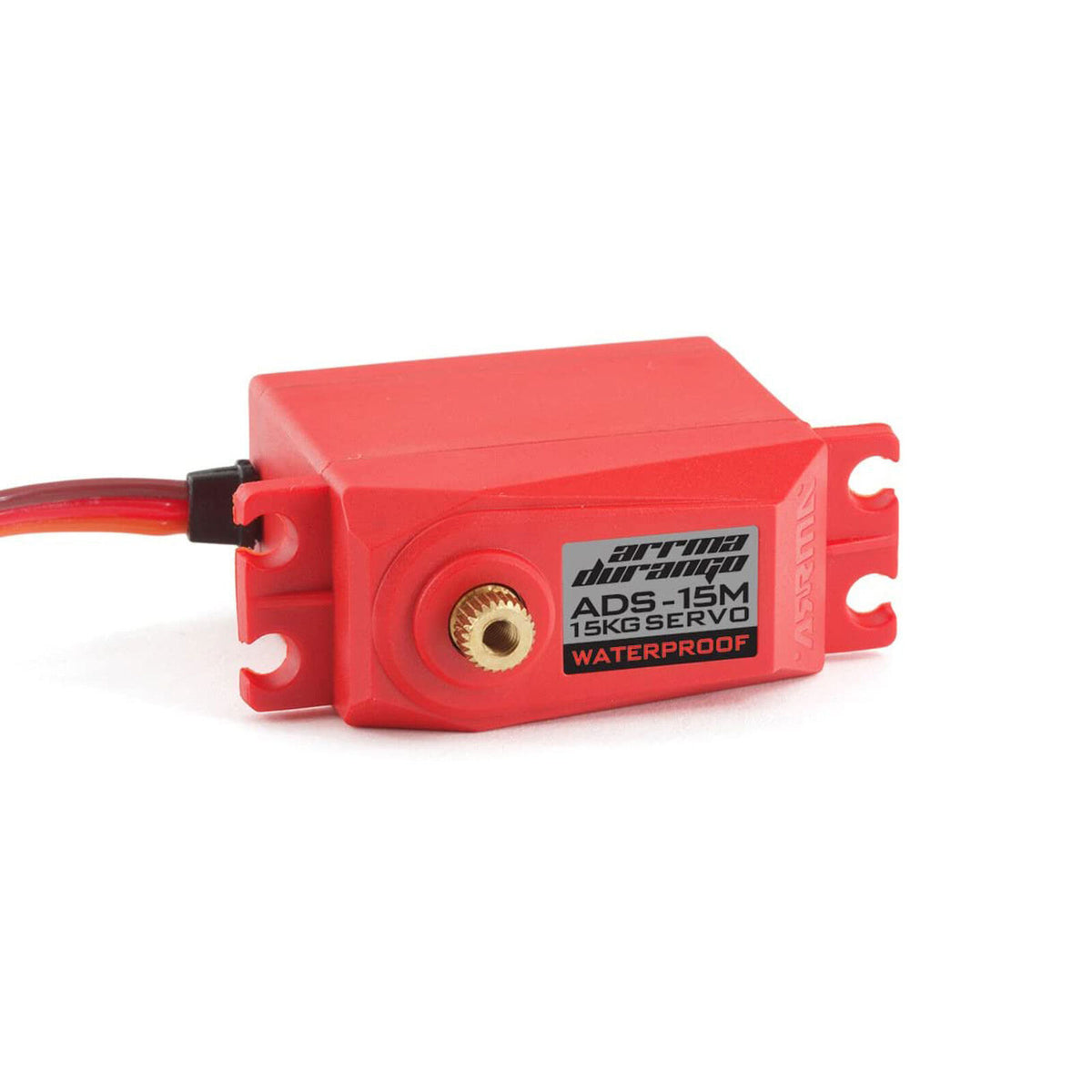

ARAM1025 ADS-15M V2 15kg Waterproof Servo, Red Overview
The ADS-15M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – Metal
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
Torque – ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V
Speed – 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V
Signal – Analogue
ARRMA ADS-15M V2 15kg Waterproof Servo, Red Product Specs
- ApplicationCars, Trucks
- BearingDual Ball Dearing
- Bushing Or BearingBearing
- Connector TypeUniversal
- Connector Wire Length11.8" (300 mm)
- Gear TypeMetal
- Input Voltage6.0V ~ 7.2V
- Manufacturer #AR390139
- Maximum Servo Speed0.16 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.2V
- Maximum Servo Torque195 oz/in (14 kg/cm) @ 6.0V, 208 oz/in (15 kg/cm) @ 7.2V
- Product Height1.48" (38 mm)
- Product Length1.57" (40 mm)
- Product Width0.78" (20 mm)
- ProgrammableNo
- Servo Operating Voltage6.0 - 7.4V (HV)
- Servo Size CategoryStandard
- Servo TypeAnalog
- Spline Count25 - Tooth
- Water-ResistantYes
