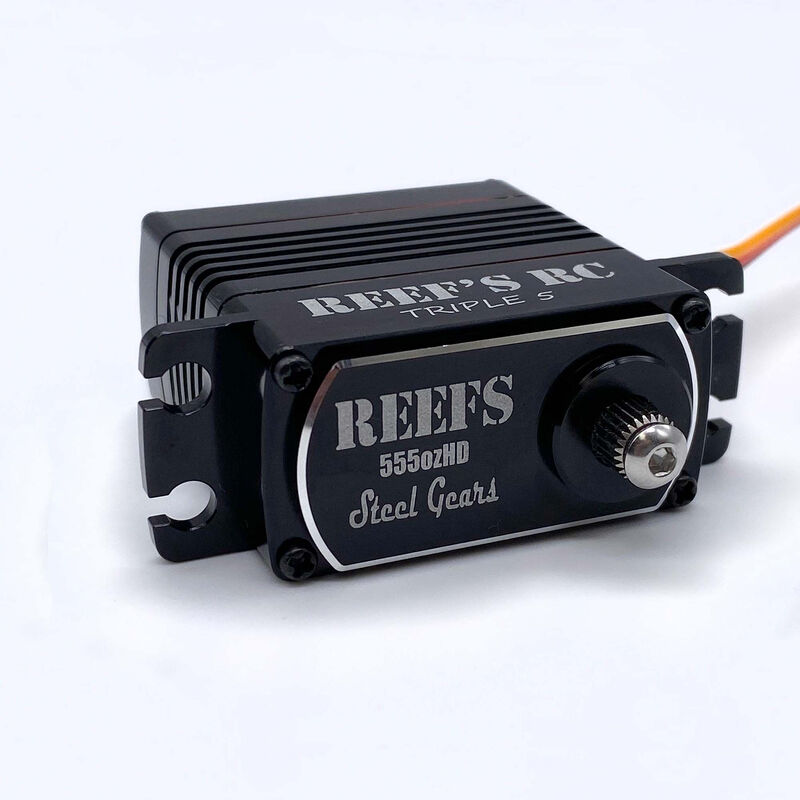

High Torque High Speed HV Coreless WATERPROOF : Not a Submarine
Use a minimum of m3x8mm screw to attach the servo horn to output shaft. Use of a shorter screw can cause failure and will void your warranty.
Deadband | 2µs |
Servo Type | Digital |
Product Height | 1.5" (38 mm) |
Servo Operating Voltage | 6.0 - 7.4V (HV) |
Connector Type | Universal |
Maximum Servo Speed | 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V |
Product Length | 1.6" (41 mm) |
Bearing | Dual Ball Bearings |
Bushing Or Bearing | Bearing |
Gear Type | Metal |
Product Width | 0.8" (20 mm) |
Servo Size Category | Standard |
Maximum Servo Torque | 500oz/in @ 6.0V, 555oz/in @ 7.4V |
Application | 1/10 - 1/8 Cars, Trucks |
Product Weight | 2.2oz (62g) |
Spline Count | 25 - Tooth |
Water-Resistant | Yes |
