HS-70MG Micro Analog Ultra Torque Metal Gear Feather Servo - HRC32070
SKU:
HRC32070
- $ 34.99
-
- $ 34.99
- Unit price
- per
Please hurry! Only 4 left in stock
Subtotal:
$ 34.99
10 customers are viewing this product
Description

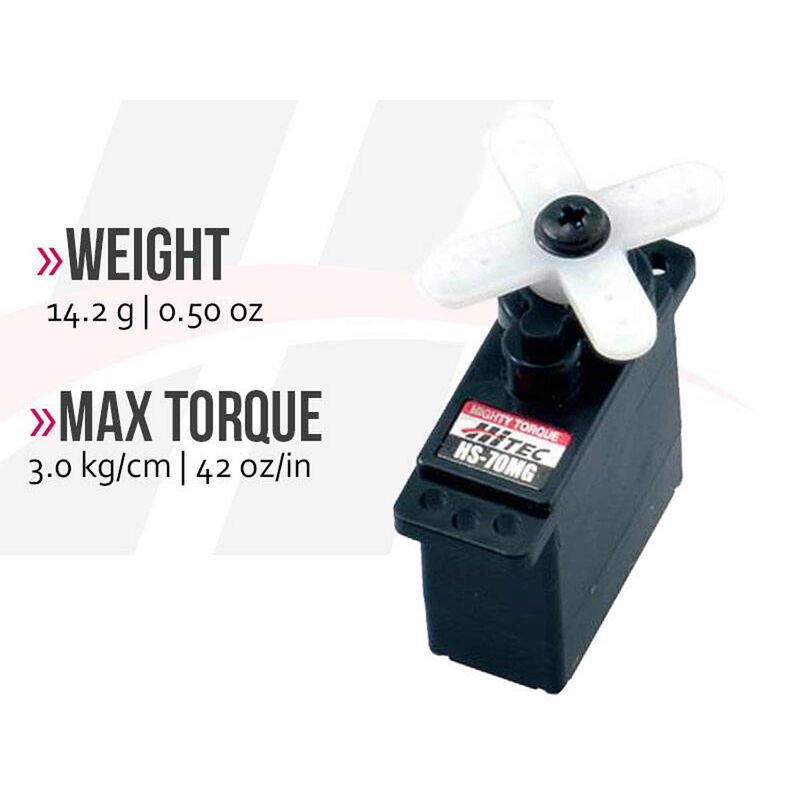

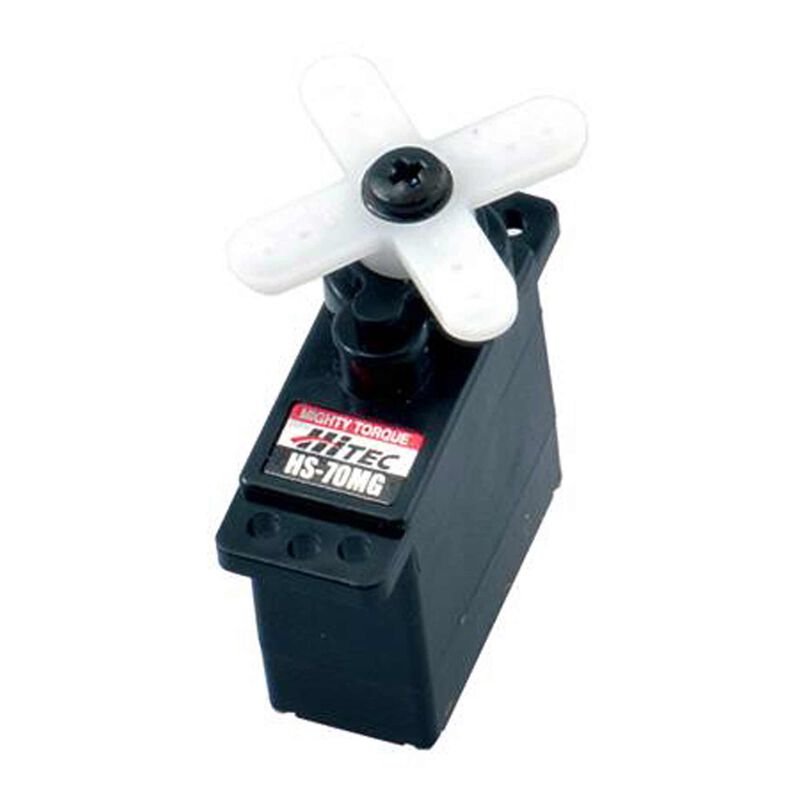

xHS-70MG Micro Analog Ultra Torque Metal Gear Feather Servo - HRC32070
Hitec's strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power.
- Torque: @4.8V 33.33oz/in / @6.0V 41.66oz/in
- Speed: @4.8V .17sec/60' / @6.0V .14sec/60'
In The Box
- HS-70MG Micro Analog Ultra Torque Metal Gear Feather Servo
Product Specifications
| Bearing | Top Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 28 AWG |
| Deadband | 5µs |
| Input Voltage | 4.8V ~ 6.0V |
| Product Height | 1.14" (29 mm) |
| Servo Type | Analog |
| Connector Type | Universal |
| Maximum Servo Speed | 0.17 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V |
| Product Length | 0.92" (23 mm) |
| Programmable | No |
| Servo Size Category | Micro |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 6.0V |
| Current Draw Stall | 1,250mA |
| Application | 36-41oz sport plane, 2M/DLG sailplane, 400-500mm electric heli, 30-39 class gas heli, 1:8 scale SC trucks, 1:8 scale power boats |
| Number of Poles | 3 |
| Product Weight | 0.50 oz (14.2g) |
| Water-Resistant | No |
| Maximum Servo Torque | 33oz/in @ 4.8V, 42oz/in @ 6.0V |
| Current Draw Idle | 8 mA |
| Product Width | 0.45" (11 mm) |
