HS-225 Mini Analog Servo - HRC31225S
SKU:
HRC31225S
- $ 20.99
-
- $ 20.99
- Unit price
- per
Please hurry! Only 3 left in stock
Subtotal:
$ 20.99
10 customers are viewing this product
Description

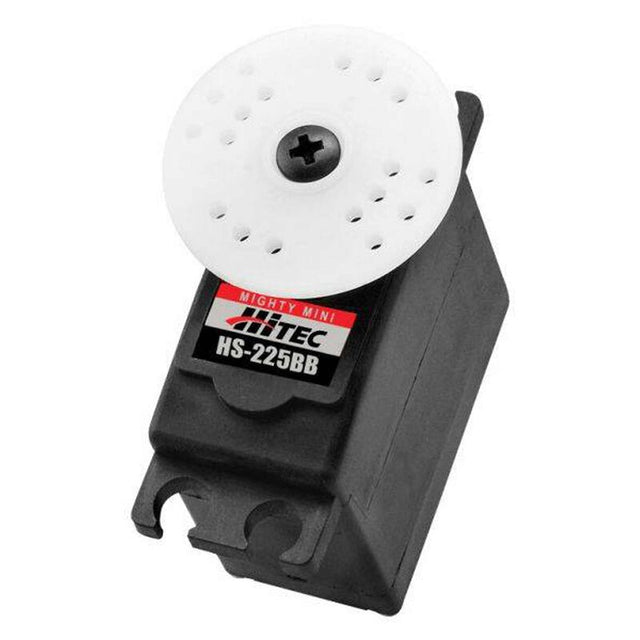

xHS-225 Mini Analog Servo - HRC31225S
The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
- Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
- Torque: @4.8V 54.15oz/in / @6.0V 66.65oz/in
- Full Size Performance in a Mini Package
- Durable Nylon Gears
- Top Ball Bearings
- Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
In The Box
- (1) HS-225 Mini Analog Servo
Product Specifications
| Current Draw Stall | 1,200 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 6.0V |
| Programmable | No |
| Servo Size Category | Mini |
| Connector Type | Universal |
| Maximum Servo Speed | 0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V |

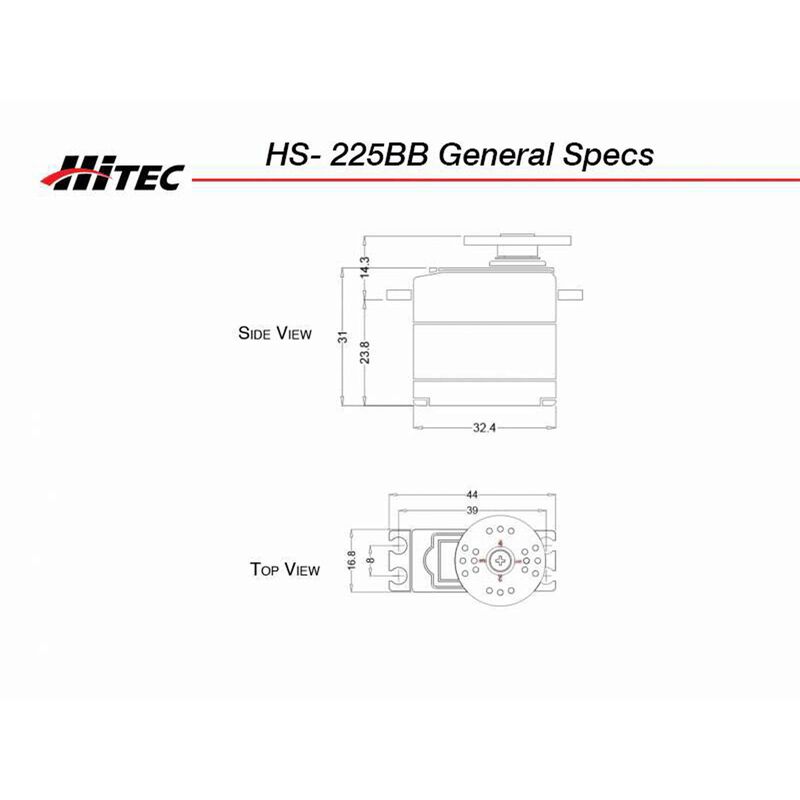

| Product Length | 1.27" (32 mm) |
| Bearing | Top Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Nylon |
| Wire Gauge | 25 AWG |
| Current Draw Idle | 8mA |
| Product Width | 0.66" (17 mm) |
| Application | Small Electric Aircraft, Cars, Boats |
| Product Weight | 0.95oz (27g) |
| Spline Count | 24 - Tooth |
| Water-Resistant | No |
| Deadband | >5µs |
| Input Voltage | 4.8V ~ 6.0V |
| Product Height | 1.22" (31 mm) |
| Servo Type | Analog |
| Maximum Servo Torque | 54oz/in @ 4.8V, 67oz/in @ 6.0V |
