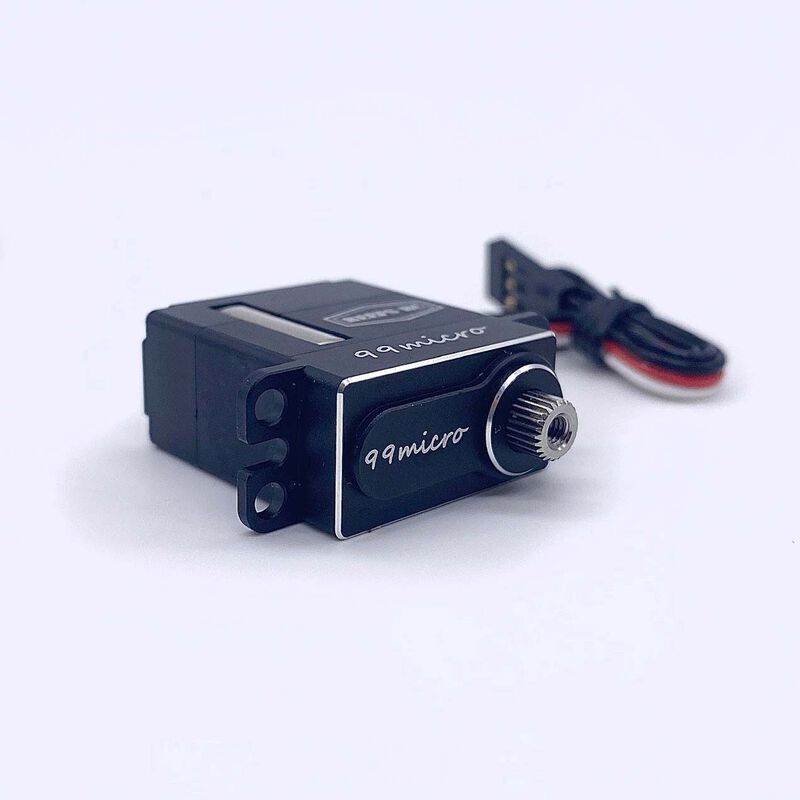

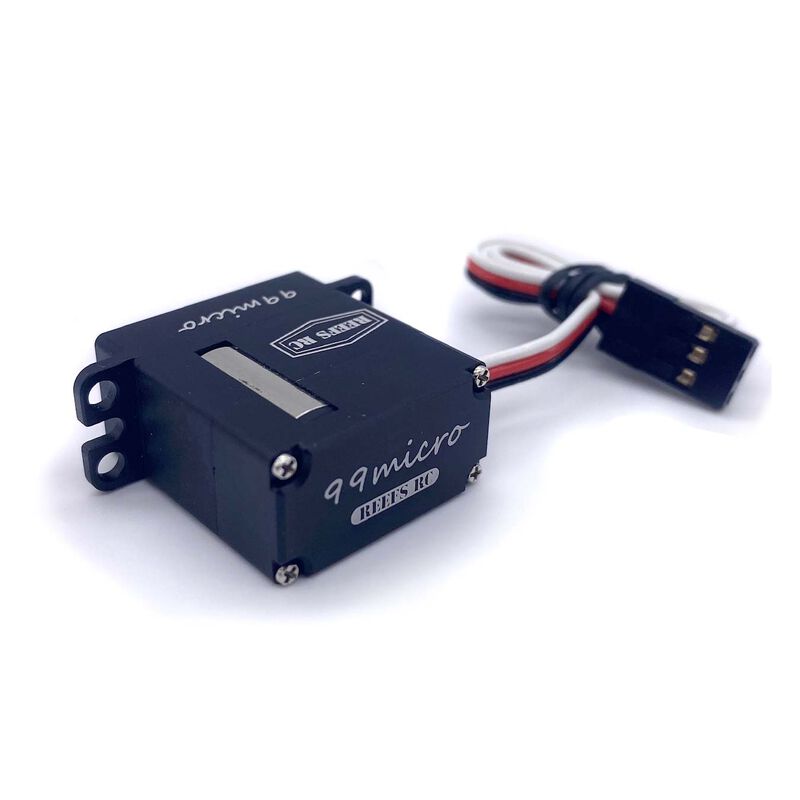

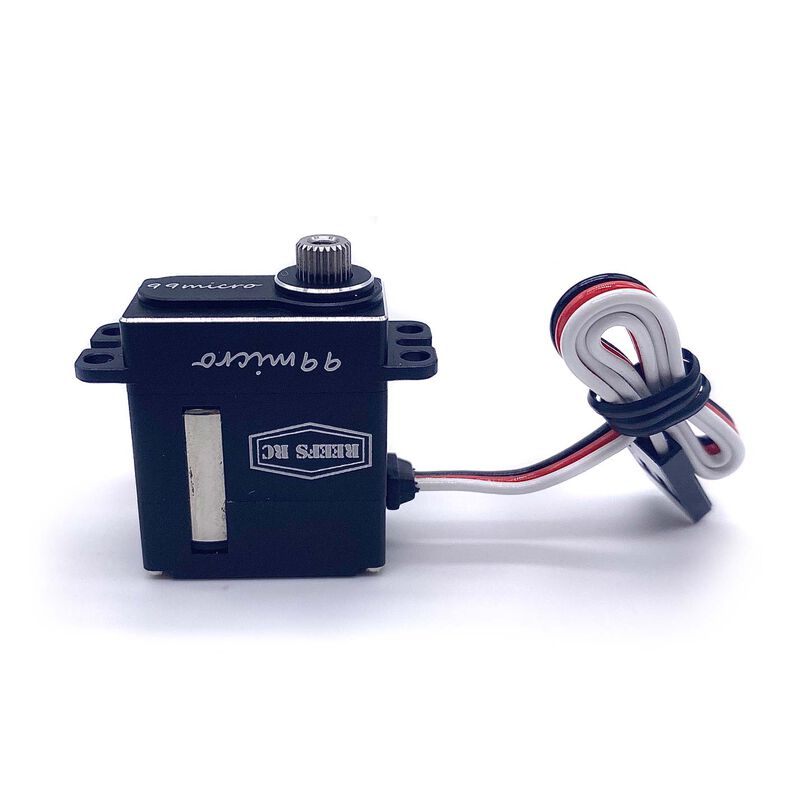

99 Micro Digital Metal Gear Waterproof Servo Black - SEHREEFS25
SKU:
SEHREEFS25
- $ 59.99
-
- $ 59.99
- Unit price
- per
Please hurry! Only 1 left in stock
Subtotal:
$ 59.99
10 customers are viewing this product
Description
x- Precision Metal Gears / All CNC Alum. REEFS Case
- High Torque High Speed Micro Servo
- WATERPROOF
Product Specifications
| Connector Type | Universal |
| Maximum Servo Speed | 0.11 sec/60 deg @ 6.0V, 0.09 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V |
| Product Length | 0.9" (23 mm) |
| Current Draw Stall | 2400mA |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Maximum Servo Torque | 89oz/in @ 6.0V, 99oz/in @ 7.4V, 115oz/in @ 8.4V |
| Water-Resistant | Yes |
| Application | 1/24 Rock Crawlers |
| Product Weight | 0.70oz (19.8g) |
| Spline Count | 25 - Tooth |
| Deadband | 2µs |
| Input Voltage | 6.0V ~ 8.4V |
| Product Height | 1.08" (27 mm) |
| Servo Type | Digital |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Programmable | No |
| Servo Size Category | Mini and Micro |
| Current Draw Idle | 200mA |
| Product Width | 0.47" (12 mm) |
