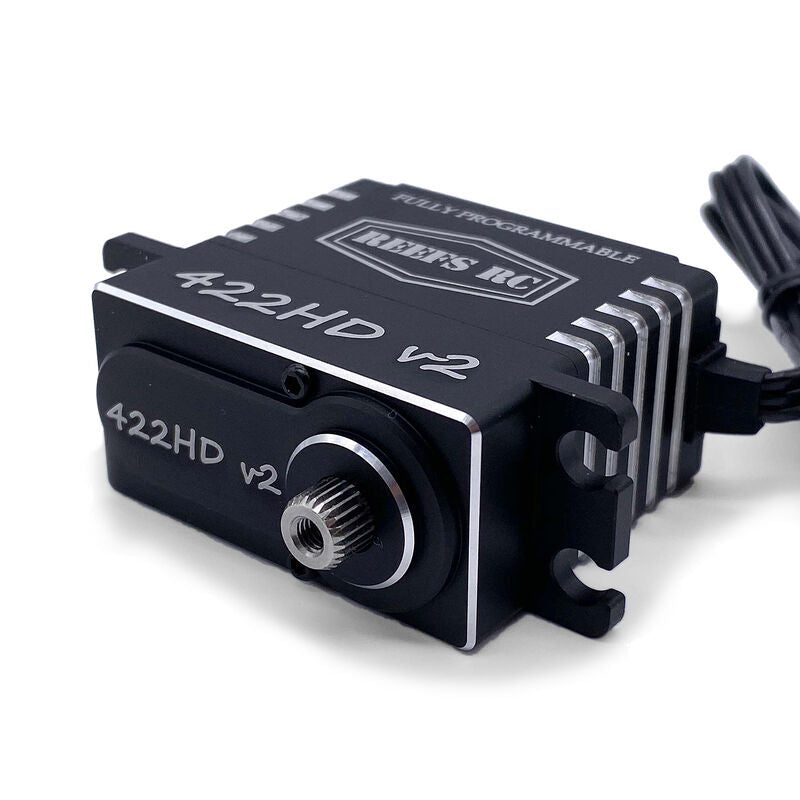

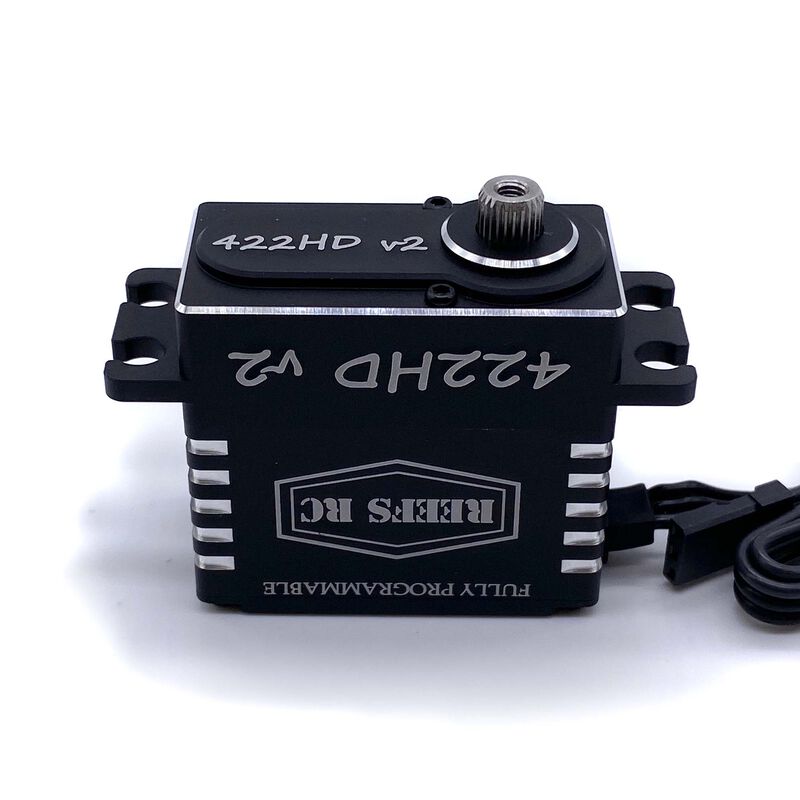

422HD V2 Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS65
SKU:
SEHREEFS65
- $ 117.99
-
- $ 117.99
- Unit price
- per
Please hurry! Only 2 left in stock
Subtotal:
$ 117.99
10 customers are viewing this product
Description
xProduct Details
Features
- High Torque Digital Coreless Servo
- Waterproof: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable with REEFS Software (REEFS LINK Required For Programming)
- Steel Gears / All CNC Aluminum Casing
- Three Ball Bearings
- 434oz-in/0.10 sec @ 8.4V
- 25T Output Spline
- BEC Not Required (Recommended for Max Performance)
Product Specifications
| Connector Type | Universal |
| Maximum Servo Speed | 0.13 sec/60 deg @ 6.0V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V |

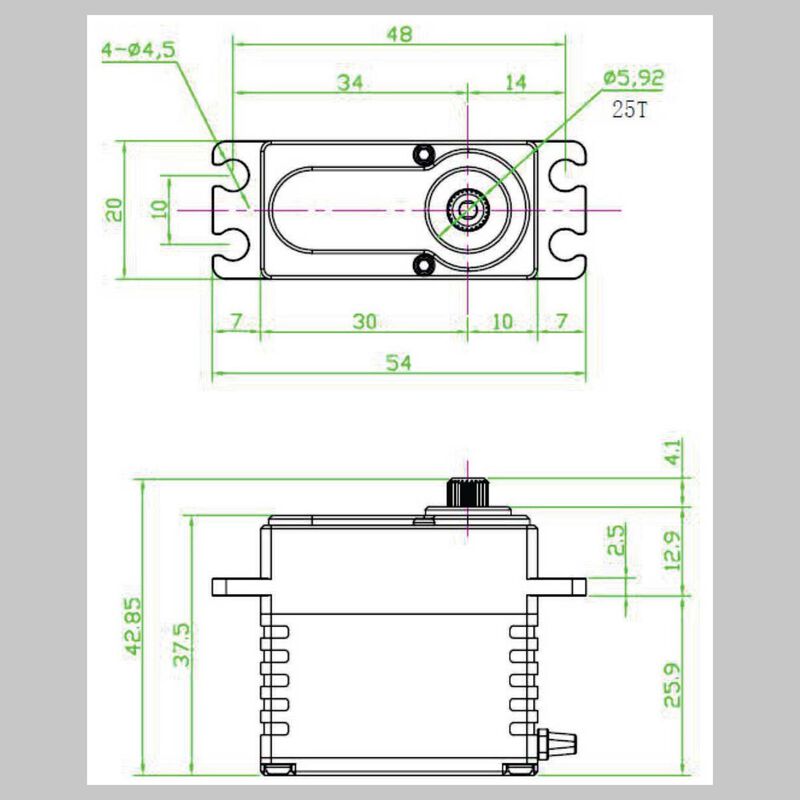

| Product Length | 1.57" (40 mm) |
| Maximum Servo Torque | 360oz/in @ 6.0V, 400oz/in @ 7.4V, 434oz/in @ 8.4V |
| Bearing | Triple Ball Bearing |
| Bushing Or Bearing | Bearing |
| Application | 1/10 Cars, Trucks |
| Product Weight | 2.85oz (81g) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Programmable | Yes |
| Servo Size Category | Standard |
| Product Width | 0.78" (20 mm) |
| Deadband | 2µs |
| Input Voltage | 4.8V ~ 8.4V |
| Product Height | 1.5" (38 mm) |
| Servo Type | Digital |
